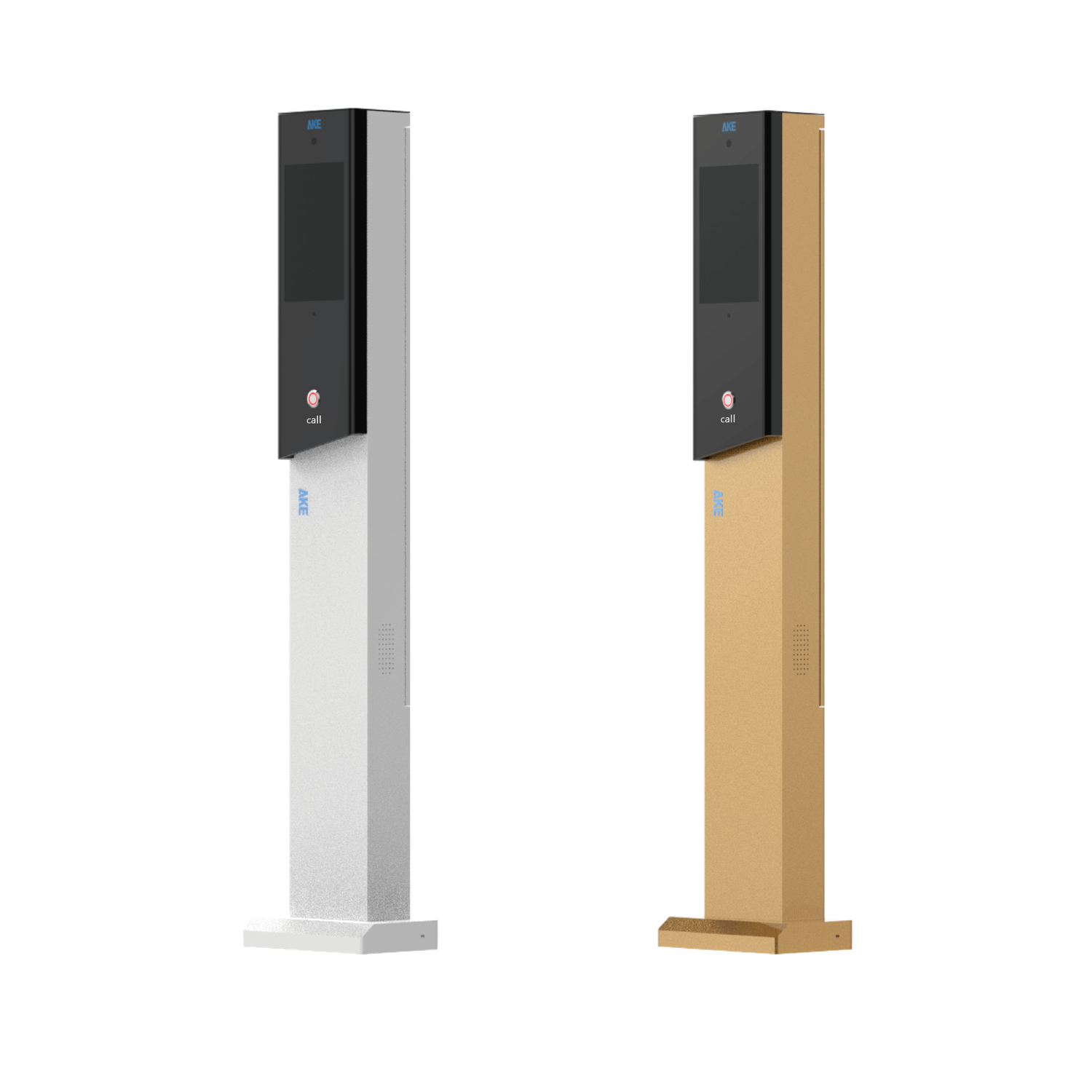

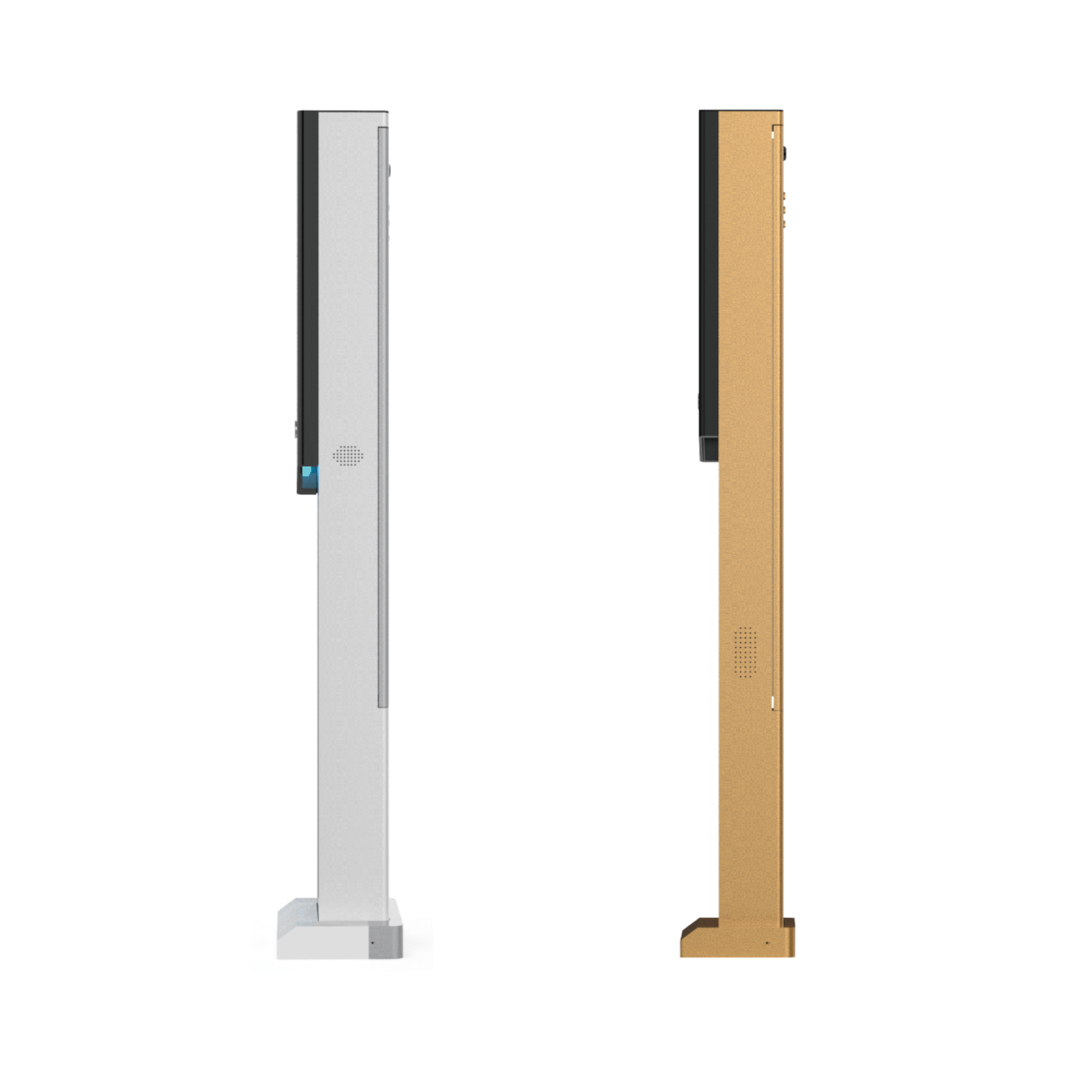

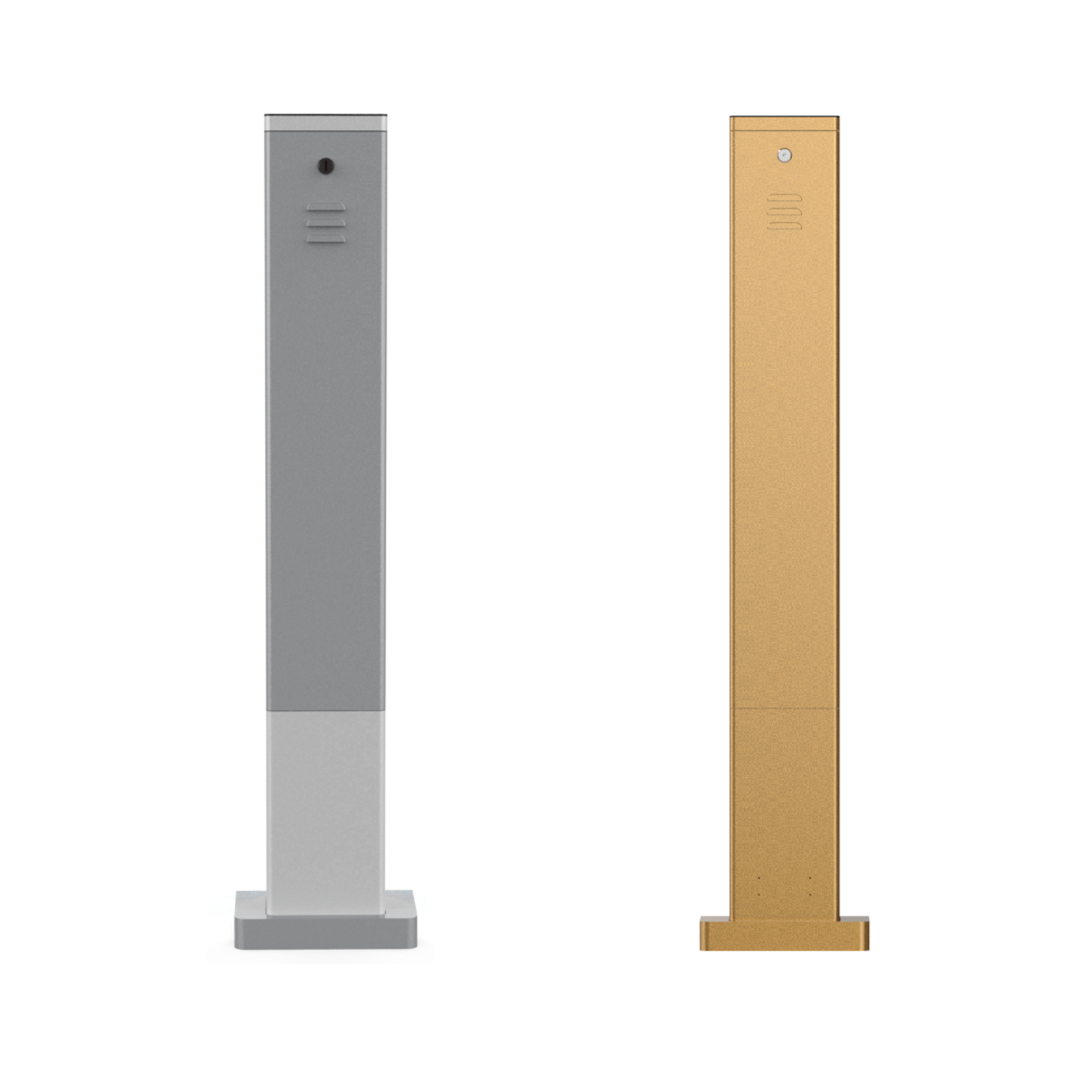

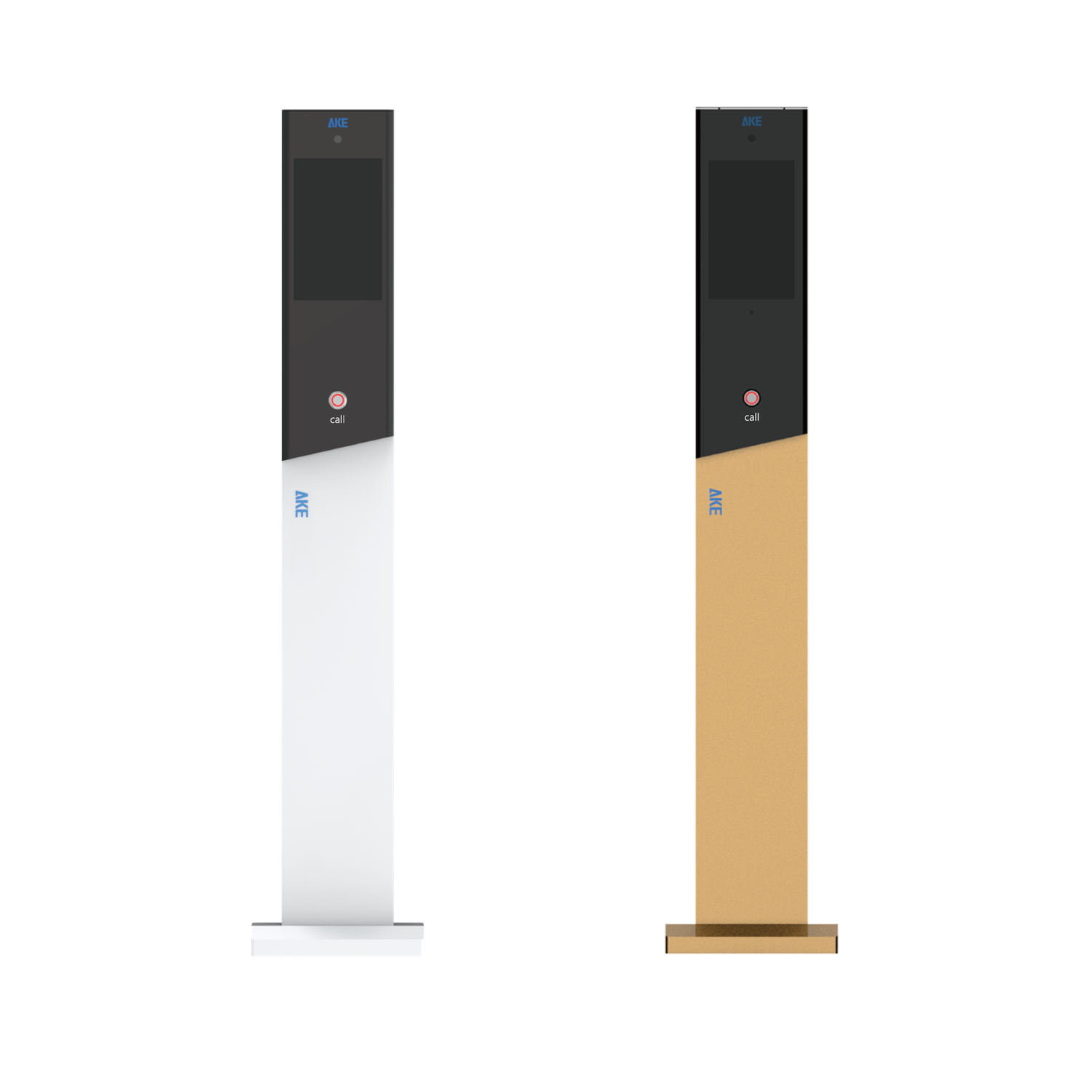

Video Parking Help Point Terminal
- The Video Parking Help Point Terminal is a high-end audio and video intercom help point pillar for unattended parking lots, suitable for underground garages, industrial parks, smart communities, and parking entrance lanes.
- It can provide one-touch calling, remote video assistance, and dynamic QR code interaction, helping system integrators and unattended parking solution providers improve service efficiency. Color options, cabinet logo printing, platform interface integration, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Video Parking Help Point Terminal integrates two-way video intercom, remote assistance, QR code display, and cloud platform communication, serving as an unattended interaction terminal for boom barrier system applications.
- One-touch calling and instant two-way video communication allow drivers to quickly contact the central control room or service center when payment, recognition, or access issues occur.
- The 10.1-inch full-color LCD screen offers up to 1000cd/m² brightness, clearly displaying dynamic QR codes, payment information, and interaction prompts even in bright entrance lane environments.
- TCP/IP communication, a 2MP camera, 80dB speaker, and IP54 protection support stable operation from -20°C to +70°C, making it suitable for underground garages and semi-outdoor parking entrances.
Features & Specifications
| Product Name | Video Parking Help Point Terminal |
| Rated Power | 30W (MAX) |
| Communication | TCP/IP |
| Protection Rating | IP54 |
| Intercom Speaker Output | 8-ohm 1 W speaker / up to 80 dB |
| Effective Voice Intercom Distance | 1000 mm |
| Camera | 2 MP camera, 2.8 mm lens |
| Display Size | 10.1-inch full-color LCD / 1280 * 800 |
| Screen Brightness | 1000 cd/m2 (MAX) |
| Working Temperature | -20℃ to +70℃ |
| Size | 1300 * 173 * 131 mm |
Applications
License Plate Recognition Solution Example for Parking Lot
- Prime LPR Controller
- Gate Barrier System
- Video Parking Help Point Terminal
