Versatile Speed Gate Turnstile

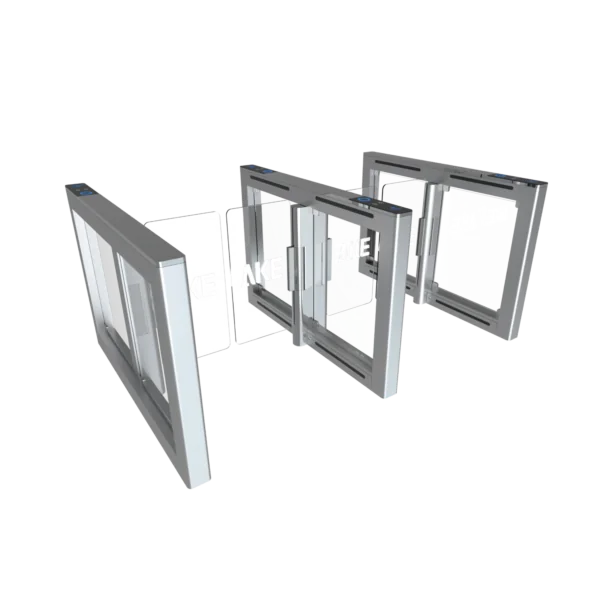

- The Versatile Speed Gate Turnstile is an indoor and outdoor intelligent speed gate system for commercial buildings, office towers, smart communities, industrial parks, and medium-to-large campus entrance management.
- Built with a brushed 304 stainless steel cabinet, 24V DC brushless motor, and IP54 protection, it supports a stainless steel wide-lane arm of up to 1200mm and provides a 920mm high blocking height. With 6 pairs of infrared sensors as standard and up to 8 pairs optional, it helps contractors build a secure, adaptable, and efficient turnstile system. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Versatile Speed Gate Turnstile integrates intelligent control, reader integration, safety detection, and wide-lane access capability to provide stable and efficient turnstile gate access management for indoor and outdoor pedestrian entrances.
- Supports IC/ID card, QR code, and face recognition device integration, and can work with turnstile biometric access control, access control, and visitor management systems, with one-way, two-way, free passage, auto-reset, and card memory modes.
- Brushed 304 stainless steel cabinet, 24V DC brushless motor, and IP54 protection support indoor and outdoor use; the 920mm high blocking arm improves physical protection and helps reduce unauthorized climbing or bypass attempts.
- Standard 6 pairs of infrared sensors, with up to 8 pairs optional, work with anti-pinch protection, anti-tailgating, anti-impact locking, audible and visual alarms, fire linkage, and automatic opening during power failure; 600–900mm acrylic lanes or 900–1200mm stainless steel wide lanes meet different project access needs.
Features & Specifications
| Product Name | Versatile Speed Gate Turnstile |
| Power Supply | AC 220V±10%, 50 Hz |
| Rated Power | 35W |
| Motor Type | 24V brushless DC motor |
| Material | 304 brushed stainless steel |
| Working Temperature | -20°C to +75°C |
| Passage Width | Acrylic: 600-900mm; stainless steel: 900-1200mm |
| Interception Height | 920mm |
| Swing Arm Type | Acrylic / stainless steel |
| Infrared Sensors | 6 pairs standard, 8 pairs optional |
| Passage Speed | 35 persons/minute |
| Protection Rating | IP54 |
| Product Dimensions | 1500×115×990 mm |
