Standard Swing Barrier Turnstile

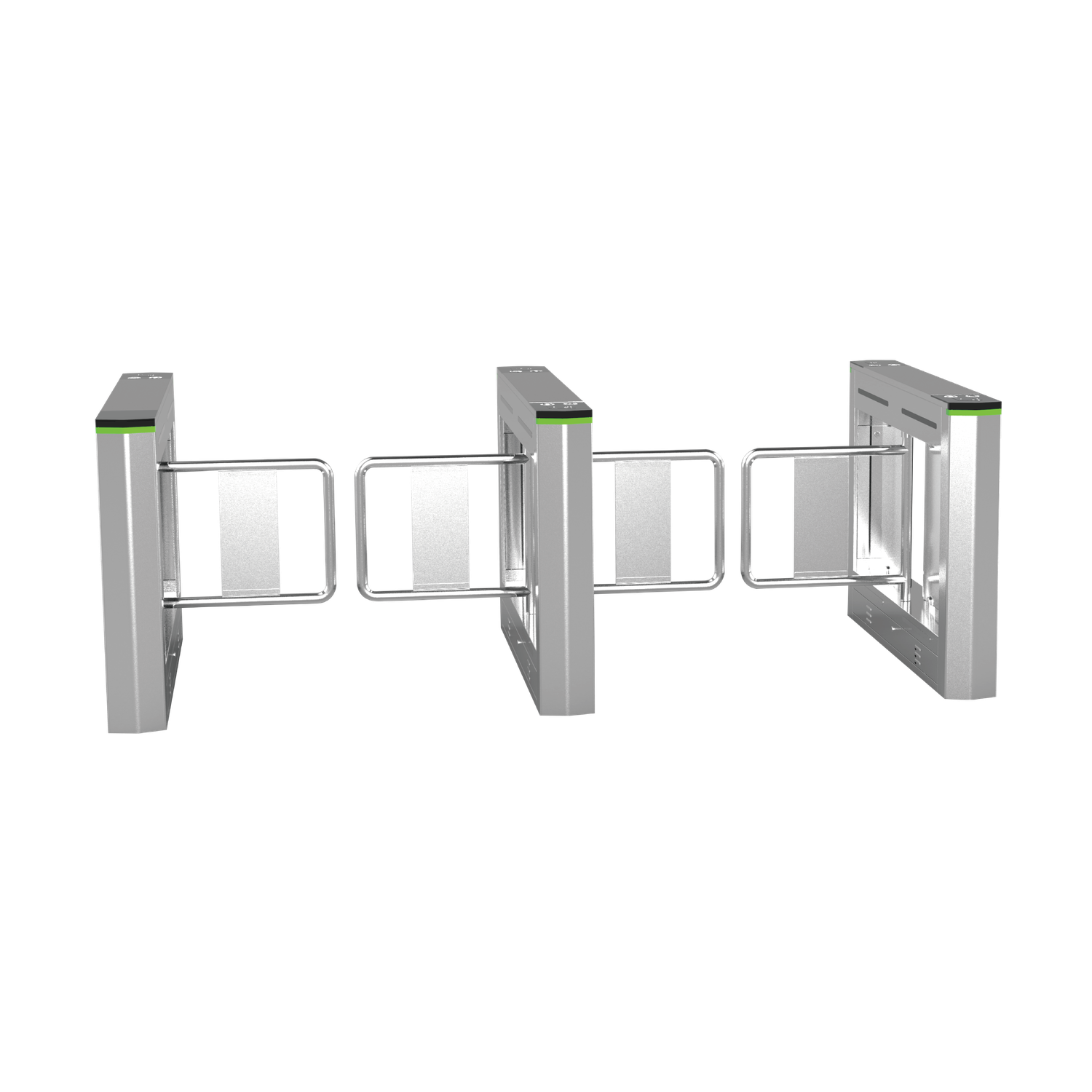

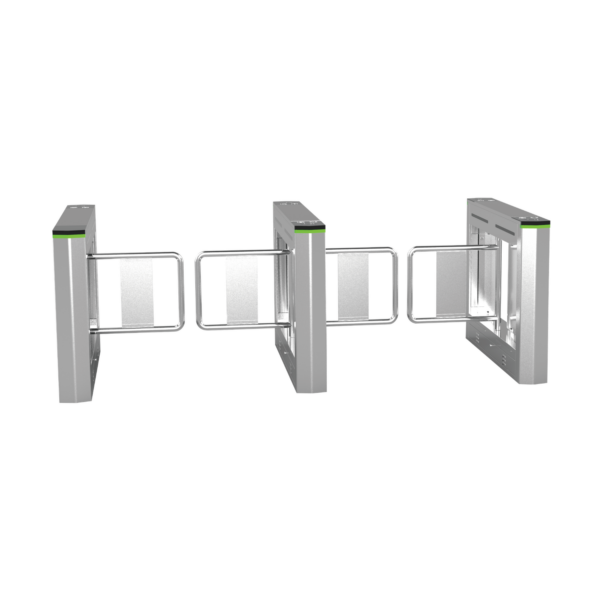

- The Standard Swing Barrier Turnstile is an intelligent indoor swing barrier system for mid-to-high-end commercial buildings, smart parks, office lobbies, and pedestrian entrances requiring orderly access management.
- Built with a 1.2+1.5mm brushed SUS304 stainless steel housing, it supports flexible single-core and dual-core configurations, with acrylic and stainless steel swing arm options. The stainless steel arm supports a passage width of up to 1200mm, making it suitable for accessible lanes, large luggage, and logistics access. Branding, wholesale, and OEM supply are available for flexible turnstile price configurations.
Overview
Features & Specifications
Applications
Overview
The Standard Swing Barrier Turnstile integrates mechanical structure, electronic control, microprocessor control, and standard reader interfaces to provide stable and secure turnstile gate access management for indoor pedestrian entrances.
- Supports single-core and dual-core configurations, can connect with barcode, ID card, and IC card readers, and integrates with access control, ticketing, and remote management platforms through RS232/RS485 and dry contact signals.
- Built with a 1.2+1.5mm brushed SUS304 stainless steel housing and laser-welded construction for rust resistance and durability; 0.8s opening/closing speed and strong starting torque improve peak-hour passage efficiency.
- Standard 6 pairs of infrared sensors support anti-pinch protection, reverse passage alarm, anti-impact protection, and fire linkage; stainless steel swing arms enable a 600–1200mm ultra-wide lane for accessible access, large luggage, and mid-to-high-end turnstile system projects.
Features & Specifications
| Product Name | Standard Swing Barrier Turnstile |
| Power Supply | AC 220V / 50 Hz |
| Rated Power | 80–120 W |
| Material | SUS304, 1.2 + 1.5 mm |
| Mechanism Structure | Horizontal helical-gear mechanism with clutch protection |
| Communication Interface | RS232, RS485 |
| Passage Width | Acrylic: 600–900 mm; stainless steel: 600–1200 mm |
| Interception Height | 780 mm |
| Protection Rating | IP54 |
| Infrared Sensors | 6 pairs |
| Working Temperature | -25°C to +70°C |
| Passage Speed | 30 persons/minute |
| Product Dimensions | 1540 × 185 × 1020mm |
