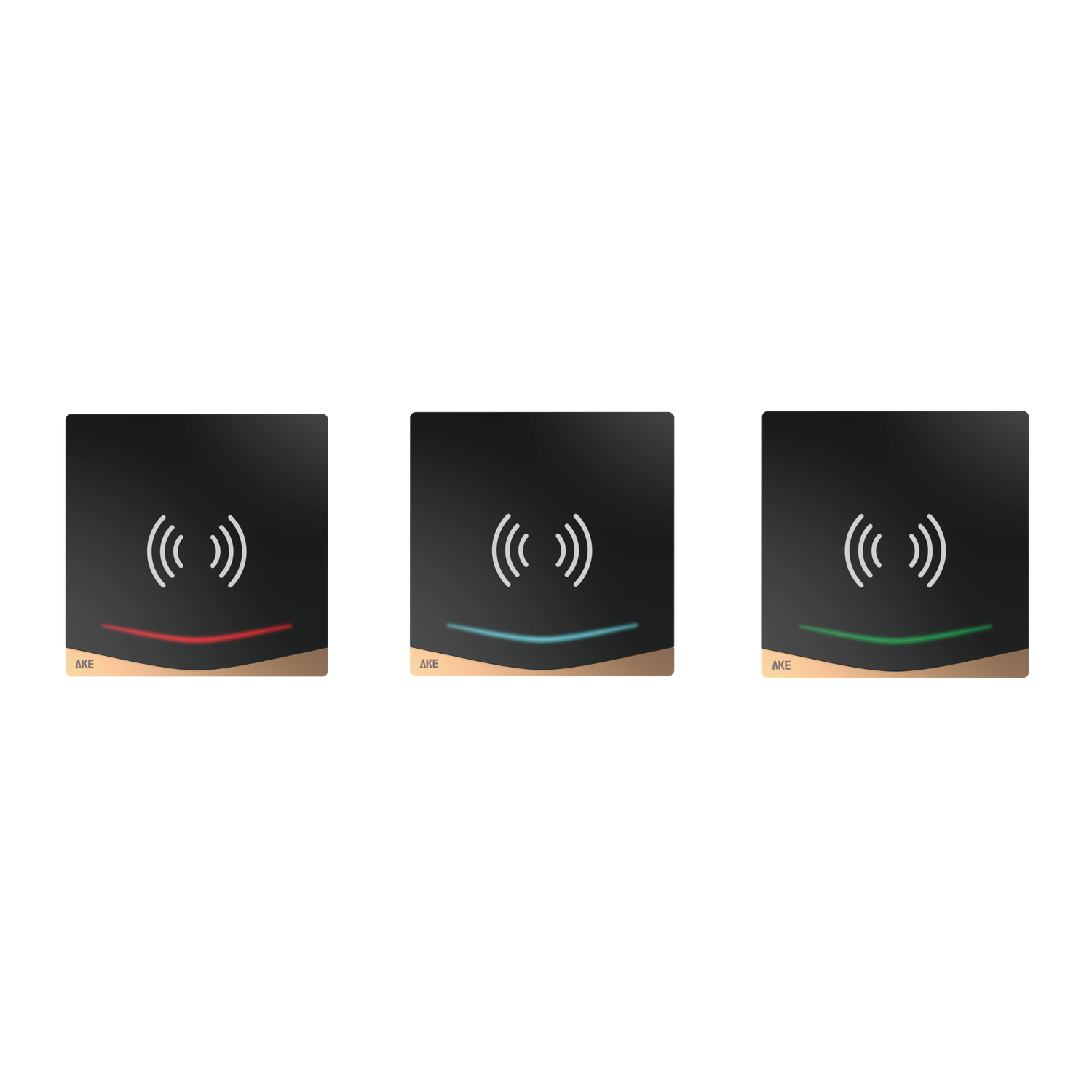

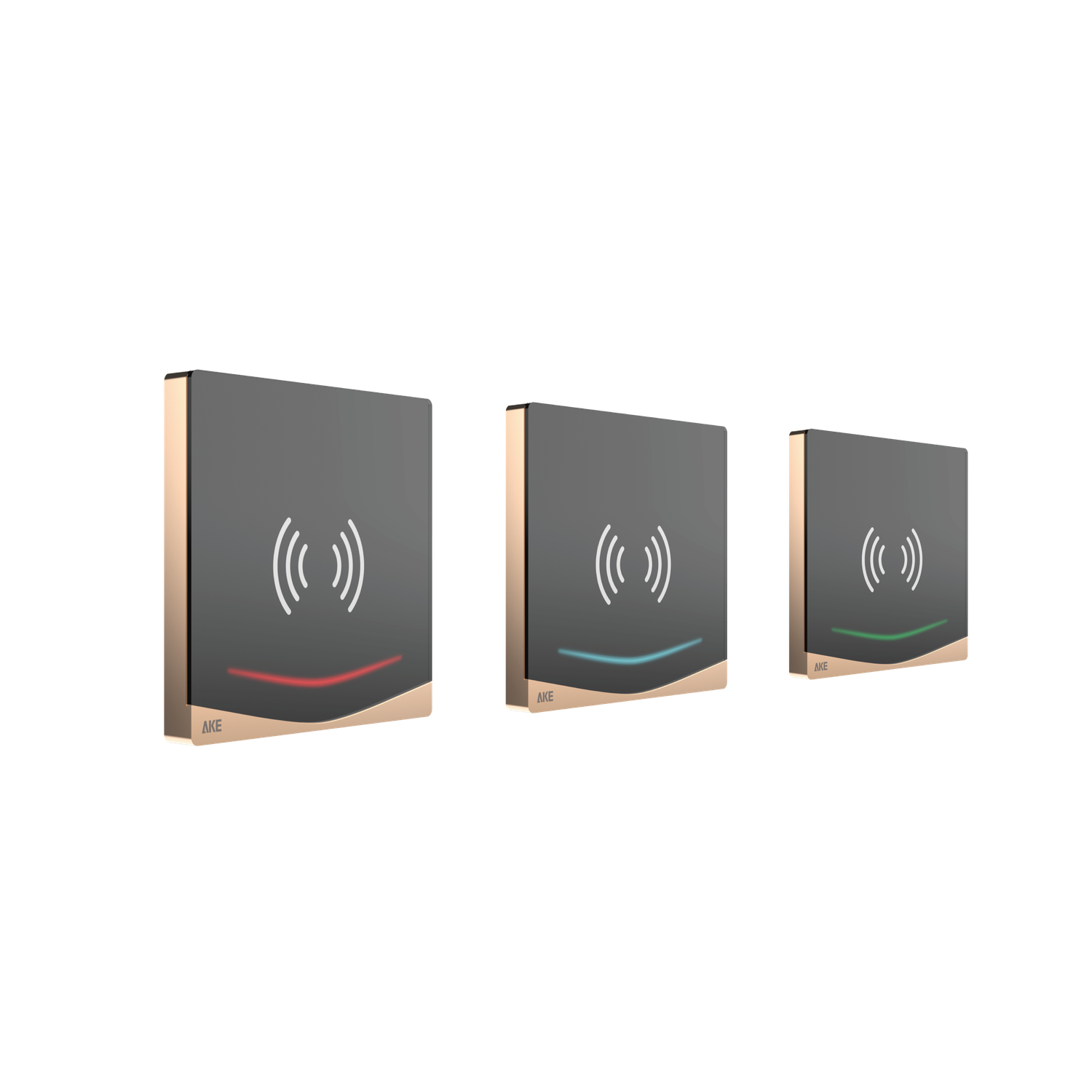

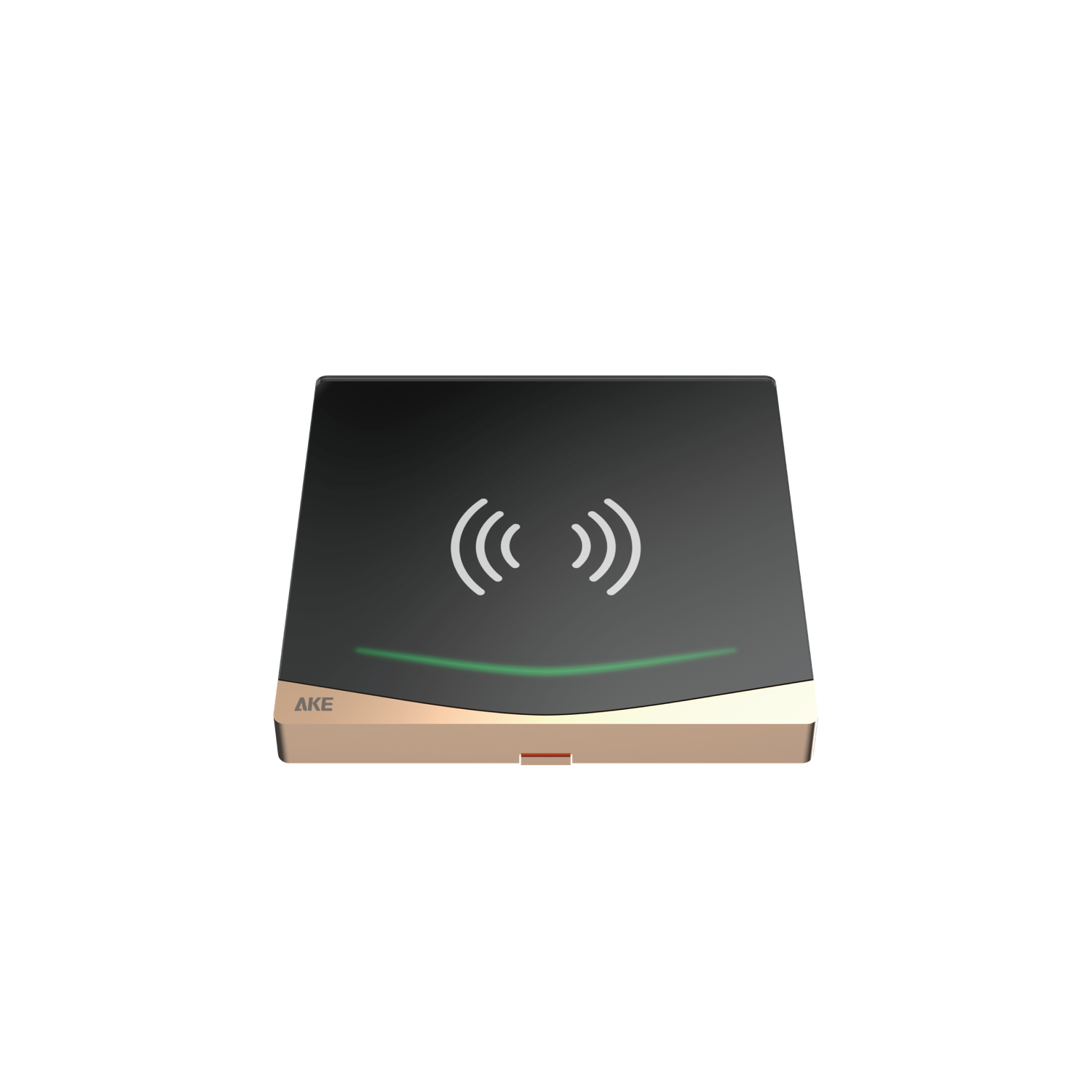

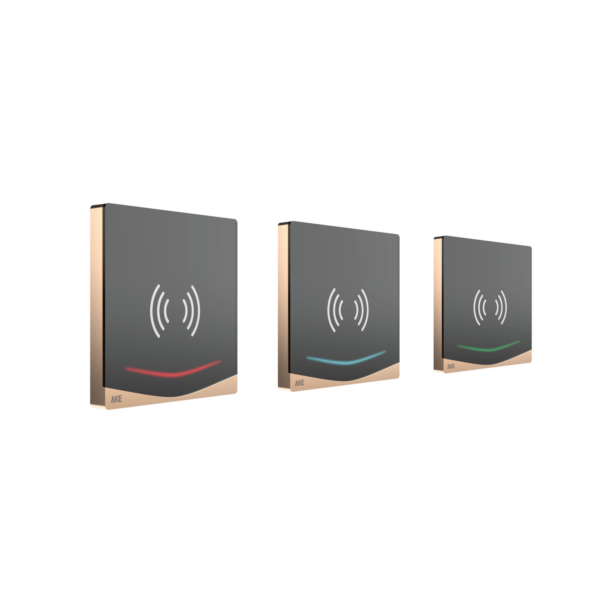

Pro Integrated Access Controller
- The Pro Integrated Access Controller is a slim, all-in-one authentication terminal built for office lobbies, industrial parks, turnstiles, and indoor/outdoor entrances. Engineered for seamless integrated access control, it combines high-speed card identification, door control, real-time data uploading, and emergency fire linkage in a single compact housing.
- This versatile controller simplifies access control system integration, empowering property managers, turnstile manufacturers, and any access control integrator to build more centralized, secure, and cost-effective security management solutions.
Integrated Design, All-in-One Functionality
The Pro integrated access control controller unifies card reading, access control, local storage, alarm input, and network communication into a single terminal — delivering a stable integrated access control solutions for office buildings, parks, and pedestrian turnstile projects, helping property managers and system integrators achieve more centralized and secure pedestrian entrance management.
Fast Recognition, High-Frequency Access
Supports IC/ID cards, CPU cards, and ID card physical serial number recognition, with fast door‑opening response for high‑frequency pedestrian access scenarios.
Flexible Deployment, Centralized Management
Access control system integrators can leverage TCP/IP communication for centralized permission management and data uploading. Standard 86‑box mounting, IP65 rating, and flame‑retardant housing support both indoor and outdoor deployment, with fire linkage and electric lock control for easier system expansion and maintenance.
| Product Name | Pro Integrated Access Controller |
| Size | 86 x 86 x 10.5 mm |
| Power Supply | DC12V |
| Rated Power | 2.5W(MAX) |
| Working Temperature | -10°C to +65°C |
| Protection Rating | IP65 |
| Access Mode | IC card (Mifare 13.56 MHz) |
| Card Reading Distance | 0 ~ 5 cm |
| Communication Interface | RJ45 (expandable RS) |
| Access Record Quantity | 100,000 |
| Whitelist Quantity | 100,000 |
| Use Scenario | Indoor and outdoor |
Application Scenario: Office Lobby & Workspace Access
Client Challenge: A premium office complex with multiple towers and high foot traffic faced fragmented access devices, inefficient permission management, and slow manual visitor verification — creating security risks and management overhead.
Integrated Solution: Deployed the Pro integrated access control controller at lobby entrances, office corridors, and elevator lobbies. It unifies card reading, access control, local storage, and network communication — supporting IC/ID cards and more with fast response for highfrequency access. TCP/IP enables realtime data uploading and centralized permission management; fire linkage supports emergency door release; IP65 and flameretardant housing allow both indoor and outdoor deployment. Customization and system integration services are available for access control system integrators.
Key Results:
- Improved Throughput: Fast card‑reading response significantly reduces peak‑hour wait times
- Enhanced Security: Centralized permission management enables granular control across towers and floors, preventing unauthorized access
- Reduced Management Costs: Self‑service visitor registration replaces manual verification, freeing security staff from booth duty
- Simplified Integration: Standard 86‑box mounting streamlines deployment; fire linkage meets building code requirements
