Parking Guidance Camera PVD30
We develop creative, comprehensive, and sustainable engineering solutions for a future where society can thrive.
Parking Guidance Camera PVD30
- The Parking Guidance Camera PVD30 is a new-generation low-power video parking space detection terminal for indoor parking lots in large commercial complexes, premium office buildings, transportation hubs, and smart hospitals.
- As a core detection device for an advanced parking guidance system, it supports parking guidance, reverse car finding, lane-level video recording, and Bluetooth indoor micro-location, making it suitable for contractors, system integrators, and parking operators.
Overview
Features & Specifications
Applications
Overview

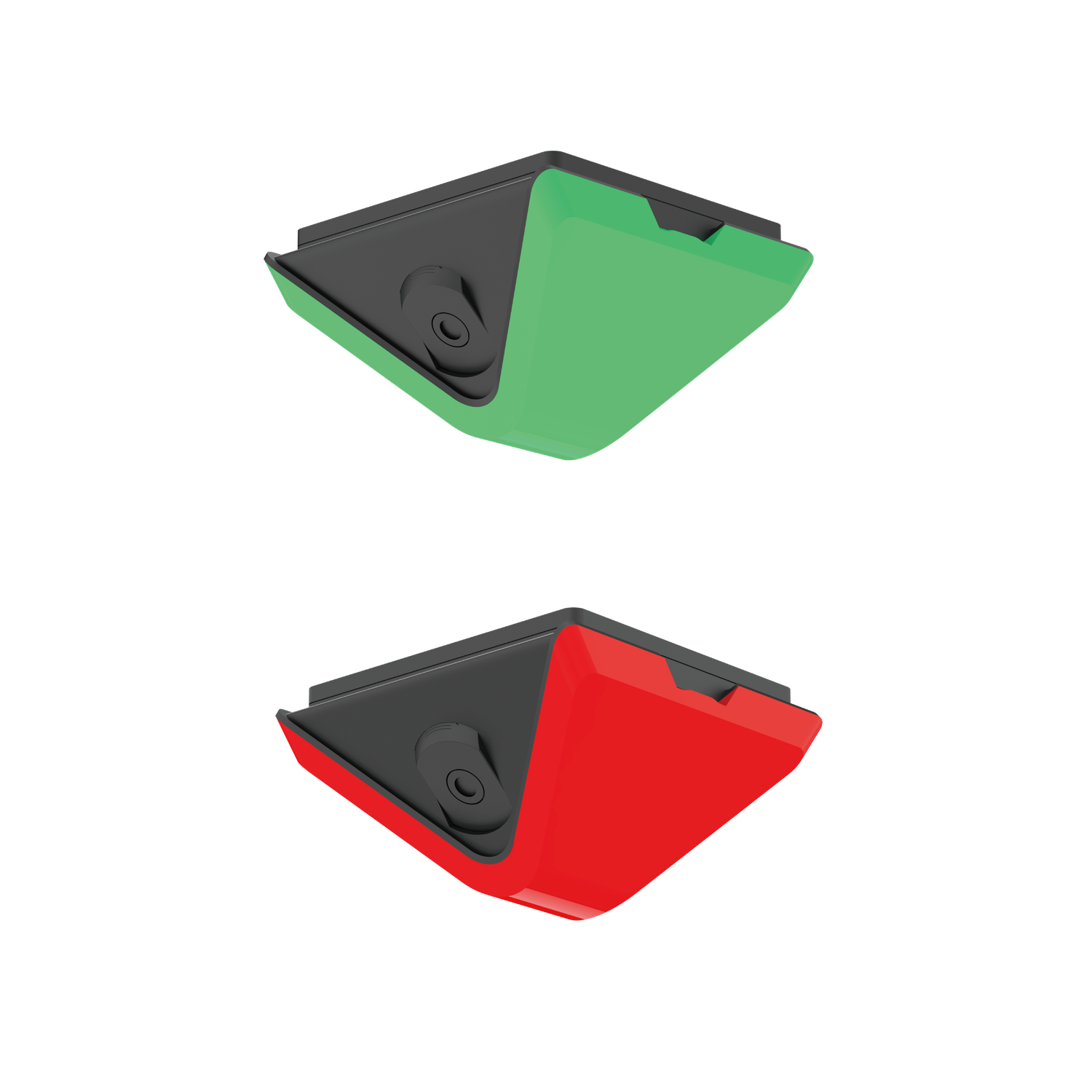

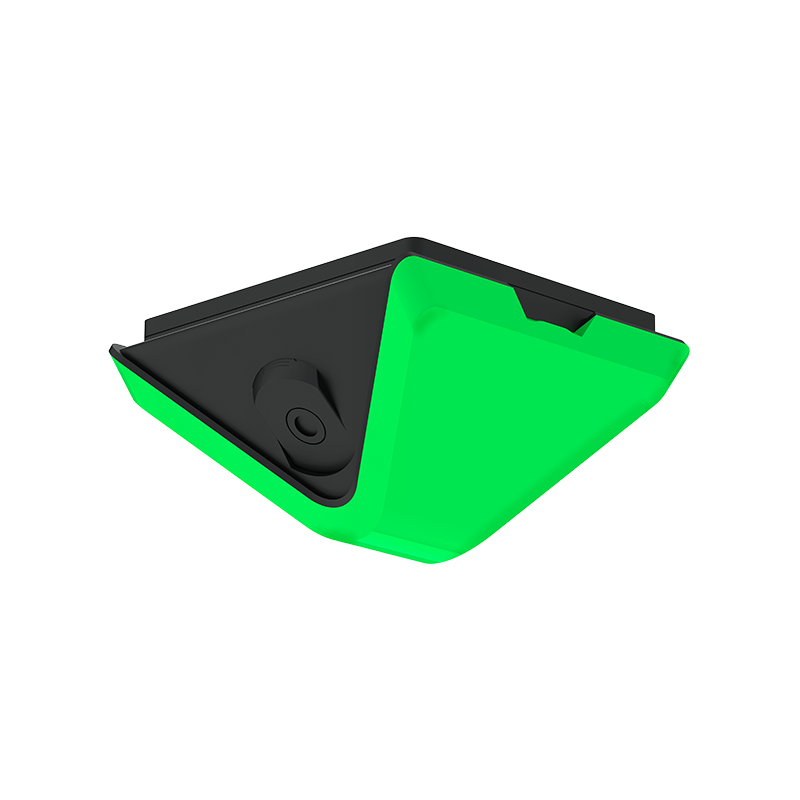

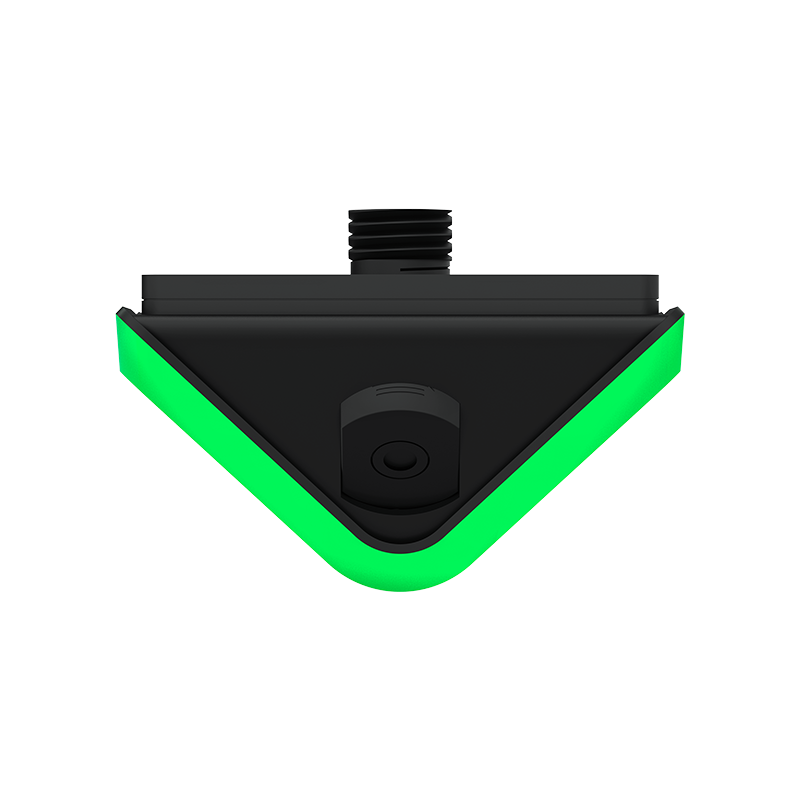

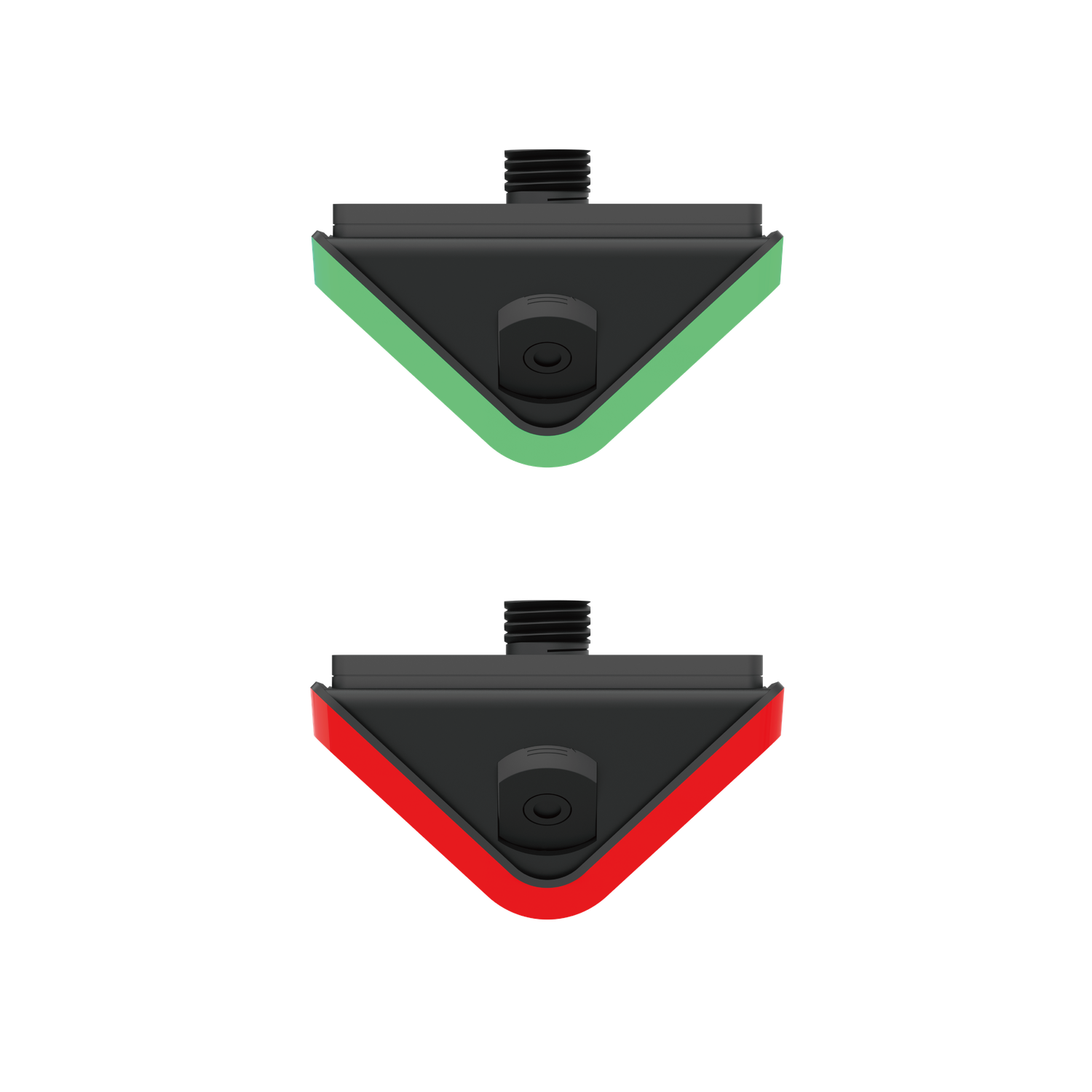

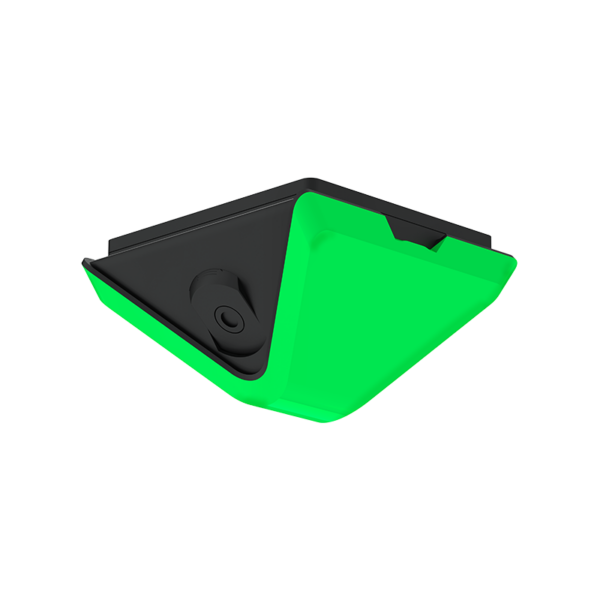

The Parking Guidance Camera PVD30 integrates parking space detection, license plate recognition, video recording, seven-color status indication, and Bluetooth beacon functions, providing high-accuracy and low-power front-end sensing for large indoor parking guidance system projects.
- Detects up to 3 spaces on one side with 99.5% parking status accuracy, supporting dynamic/static reverse car finding and mobile 2D/3D cross-floor navigation to improve the parking guidance experience.
- Supports 2MP/4MP camera configurations, 1280×720 video resolution, and NVR recording, while seven-color indicator lights enable parking status display and device fault self-diagnosis.
- Power consumption is as low as 5W, with network cable power and communication, TCP/IP transmission, and up to 20-device daisy-chain cascading; optional 4mm/6mm lenses, defocus alarm, and backlight compensation meet different project customization needs.
Features & Specifications
| Product Name | Parking Guidance Camera PVD30 |
| Operating Voltage | DC 12V ~ 48V |
| Rated Power | 5W (MAX) |
| Pixels | 3-space: 4MP; 2-space: 2MP |
| Parking Space Status Accuracy | 99.5% |
| Ambient Illumination | >= 10 lux |
| Communication | TCP/IP |
| Protection Rating | IP51 |
| Working Temperature | -10°C to 60°C |
| Lens | 2.8 mm |
| Bitrate Control | Variable bitrate |
| Video Size | 1280 x 720(720p) |
| Frame Rate | 25 fps |
| Maximum Bitrate | 4096 Kbps |
Applications
Parking Guidance Solution Example for Parking Lot
- Parking Guidance Camera
- LCD Indoor Parking Guidance Display
