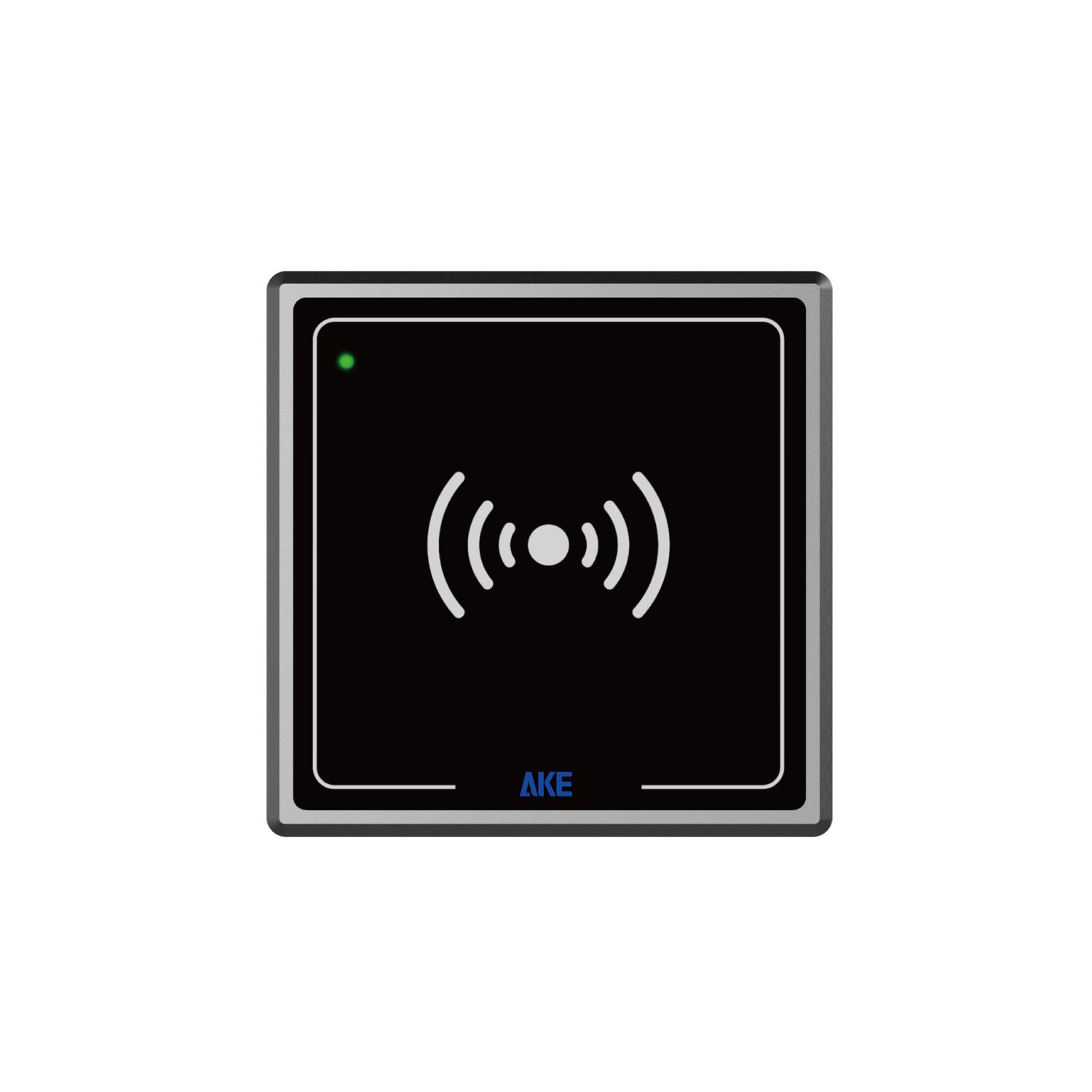

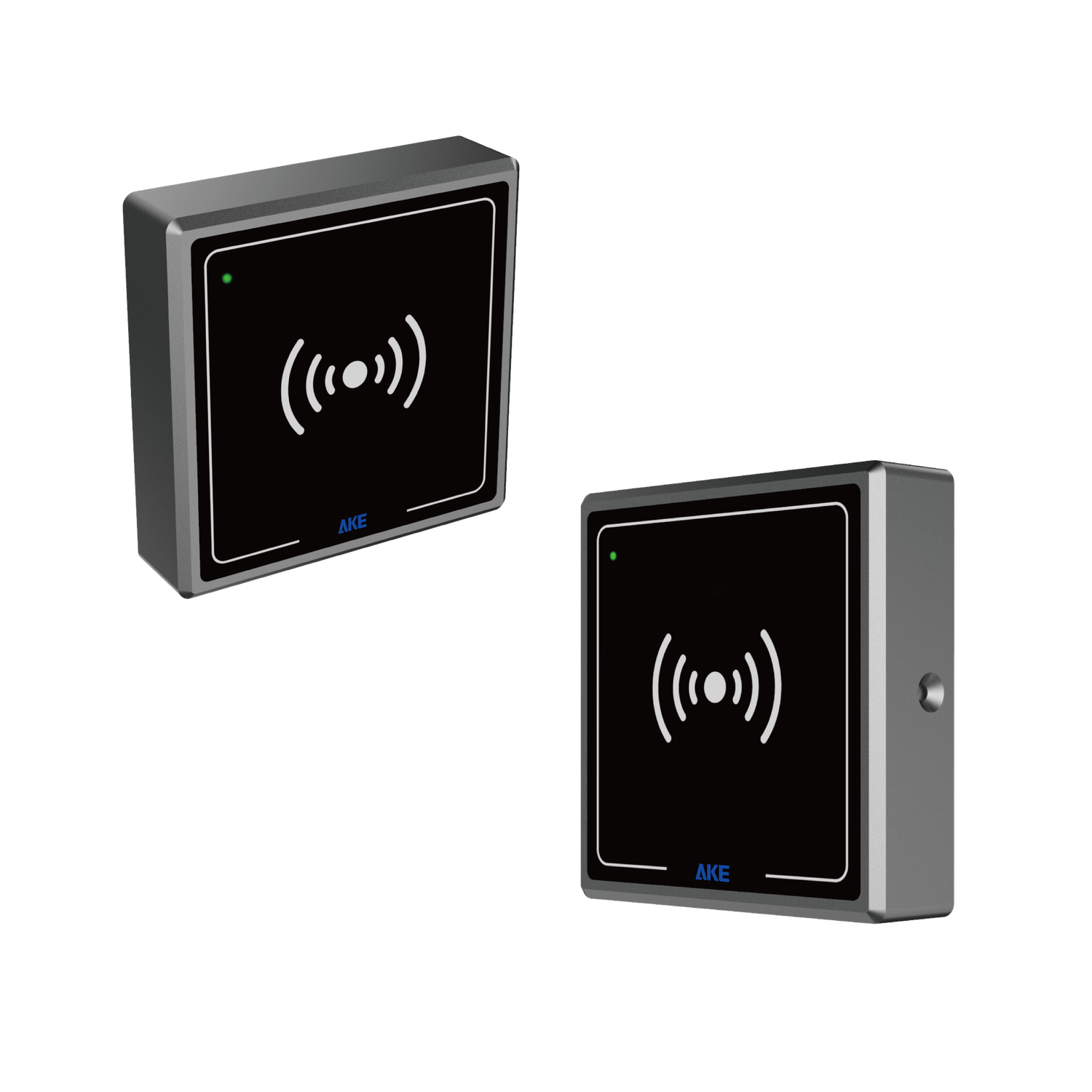

Lite Integrated Access Controller
- The Lite Integrated Access Controller is a compact all-in-one access control terminal for office access, pedestrian turnstiles, indoor entrances, and pedestrian access points in parking management projects.
- It integrates card reading, access control, data uploading, and fire linkage in one device, helping property managers, system integrators, and contractors quickly build a stable integrated access control solution. Wholesale, OEM, and system expansion services are available.
Overview
Features & Specifications
Applications
Overview
The Lite Integrated Access Controller is designed for small access points and pedestrian entrance control, making it suitable for access control systems for office buildings, property access management, and pedestrian access points in parking projects.
- Door opening time after card reading is less than 0.1 seconds, with support for IC/ID/serial number identification for efficient personnel access control in high-frequency card-swiping scenarios.
- Supports 20,000 whitelist records and 100,000 access logs, with real-time data uploading through an RJ45 network interface for centralized entrance management.
- Standard fire linkage input, door sensor input, alarm input, and NO/NC lock output interfaces ensure compatibility with common electric locks and make access control system maintenance and project expansion easier.
Features & Specifications
| Product Name | Lite Integrated Access Controller |
| Size | 86*86*22mm |
| Power Supply | DC12V |
| Rated Power | 1.5W(MAX) |
| Working Temperature | -10°C to +65°C |
| Access Mode | IC/ID card (Mifare 13.56 MHz) |
| Card Reading Distance | 3 ~ 5 cm |
| Communication Interface | RJ45 |
| Access Record Quantity | 100,000 |
| Use Scenario | Indoor and outdoor |
Applications
