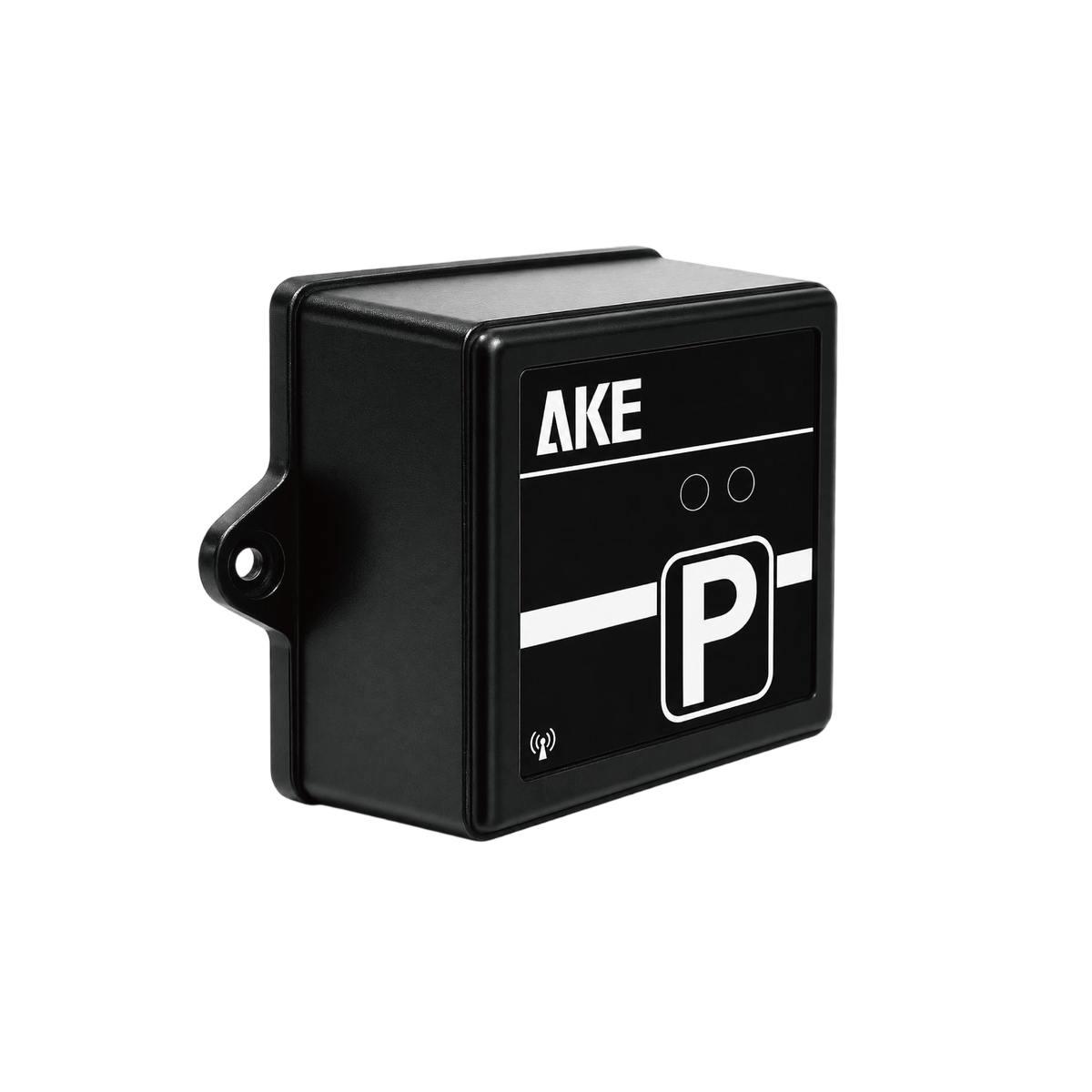

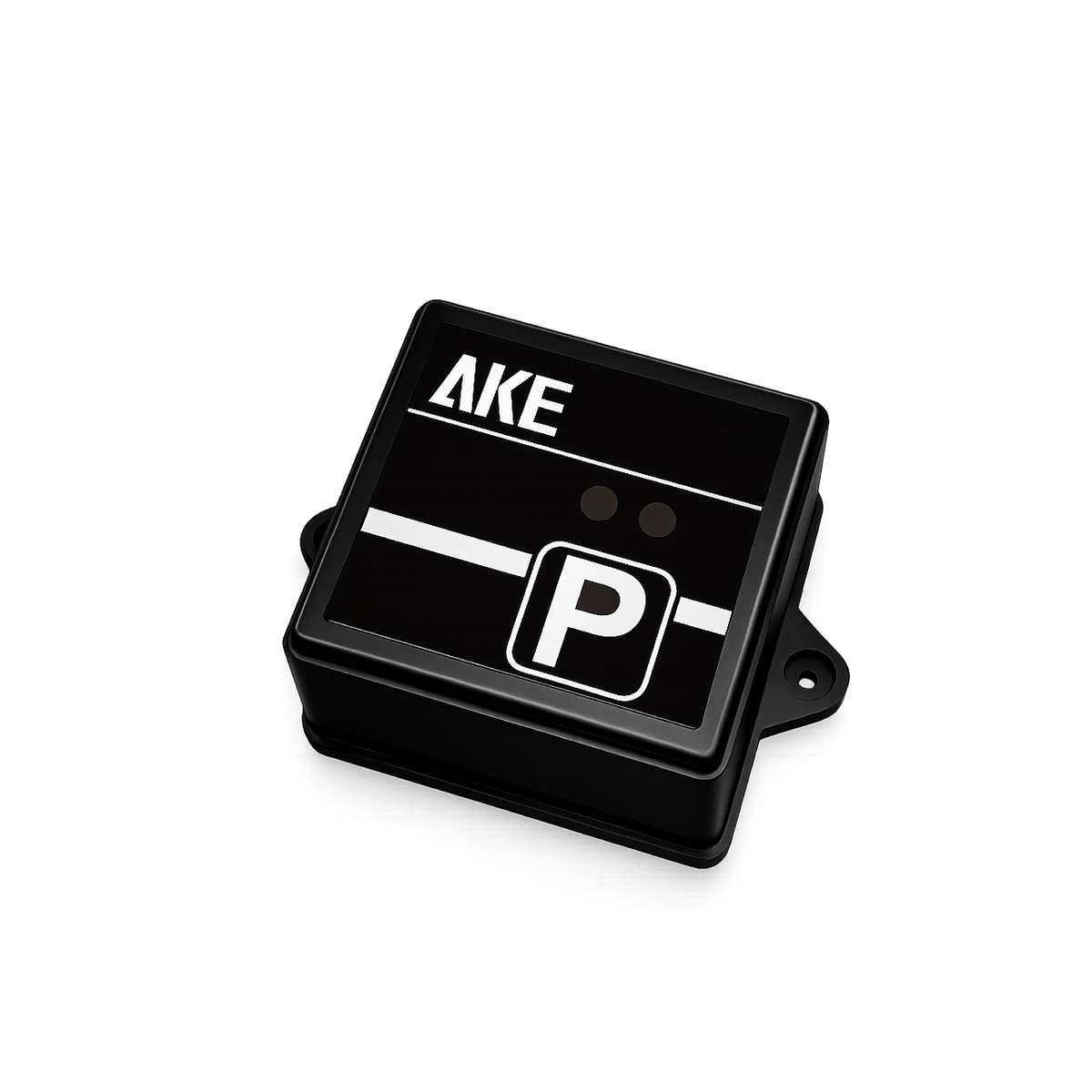

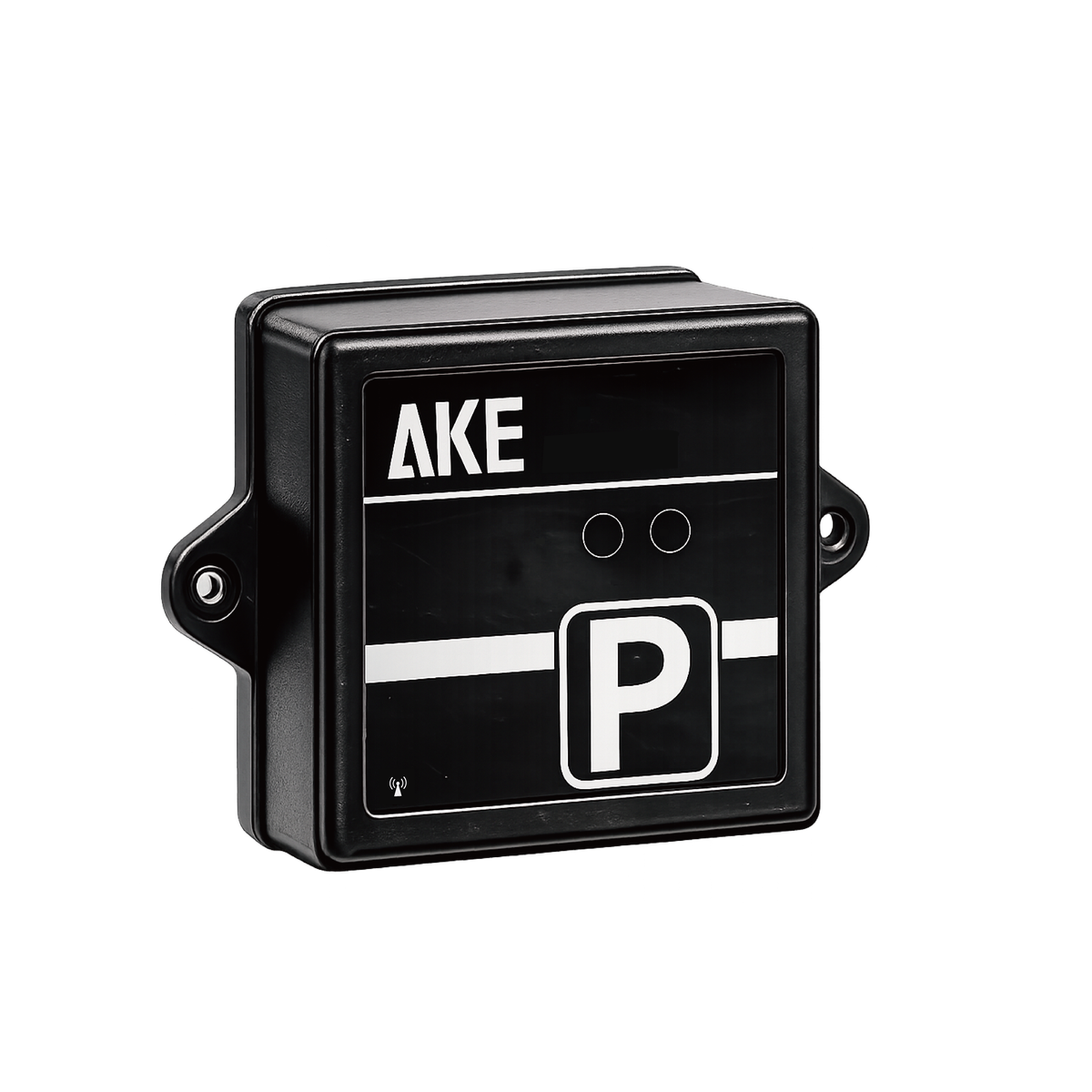

Infrared Parking Guidance Sensor
- The Infrared Parking Guidance Sensor is a wireless parking space detection terminal designed for indoor mechanical parking garages, multi-level parking equipment, and complex indoor parking management scenarios.
- It detects parking occupancy through infrared blocking and wirelessly transmits data to the controller, helping mechanical parking manufacturers, system contractors, and operators build a more flexible smart parking guidance system. Wireless frequency, private protocol, logo branding, wholesale, and OEM customization are available.
Overview
Features & Specifications
Applications
Overview
The Infrared Parking Guidance Sensor uses infrared blocking detection to identify whether a mechanical parking space is occupied or vacant, providing stable sensing data for indoor mechanical garage parking guidance.
- Supports automatic uploading of parking status changes, with trigger configuration, channel configuration, and environmental signal quality detection for easier on-site wireless system commissioning.
- RF 470–510MHz wireless communication supports up to 50m transmission distance, reducing complex wiring and making it suitable for mechanical parking garages and multi-level parking equipment.
- Built-in long-life battery supports 3–5 years of operation, with OTA remote upgrades, low-battery alerts, IP52 protection, and a 1.4m±0.2m detection range to reduce parking guidance system maintenance costs.
Features & Specifications
| Product Name | Infrared Parking Guidance Sensor |
| Wireless Operating Frequency | RF 470–510 MHz |
| Wireless Communication Distance | > 50m |
| Maximum Detection Distance | 1.4 ± 0.2 m |
| Protection Rating | IP52 |
| Working Temperature | -10°C to +45°C |
| Battery Life | 3-5 years |
| Size | 80 x 75 x 45 mm |
Applications
