High-Speed Barrier Gate

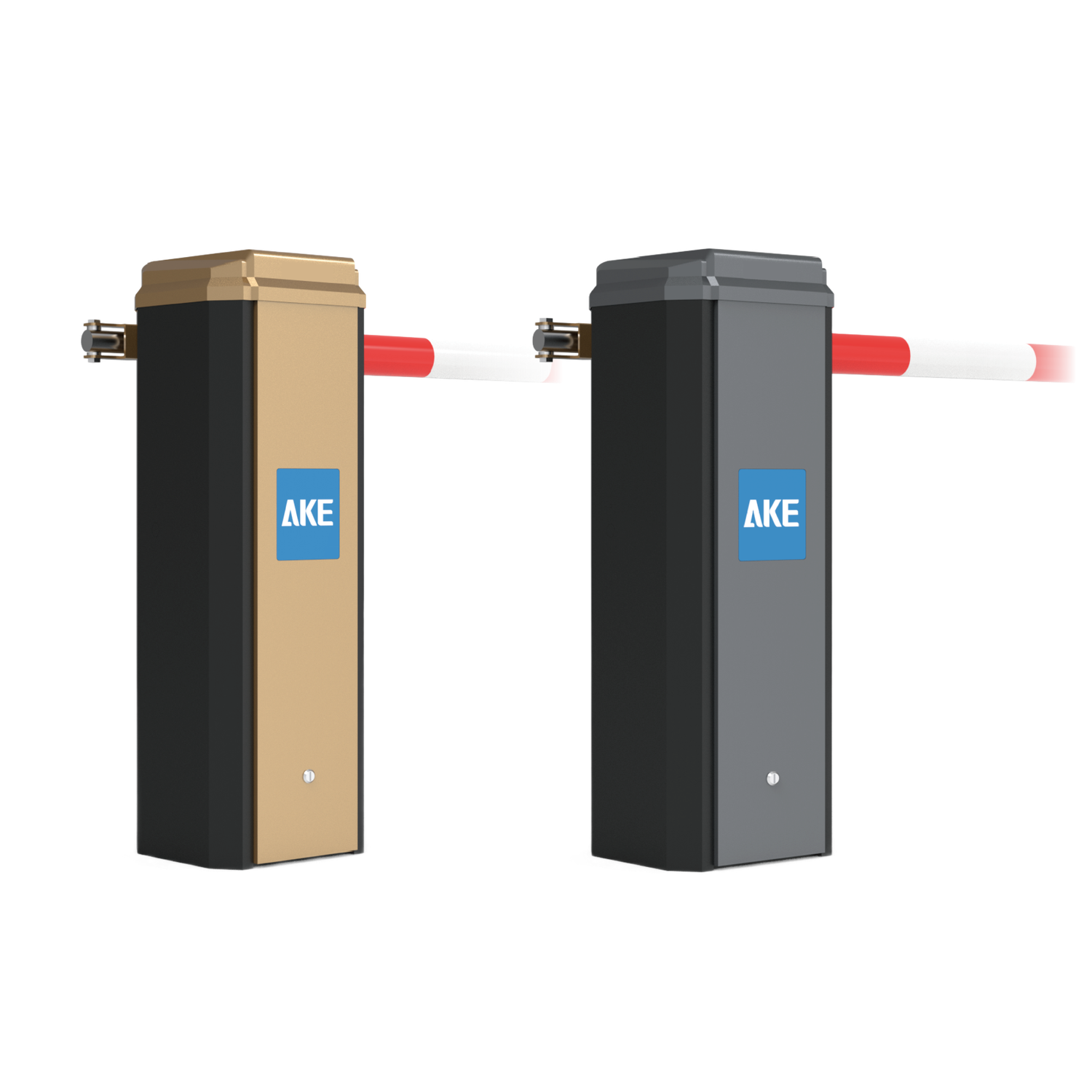

- The High-Speed Barrier Gate is an industrial-grade high-performance brushless barrier gate for medium and large parking lots, commercial garages, industrial parks, and high-frequency vehicle access areas.
- As a professional boom barrier device, it delivers fast access, stable lane control, and long service life. Wholesale, OEM, LED barrier arm, and cabinet customization services are available for system integrators, contractors, and boom barrier suppliers.
Overview
Features & Specifications
Applications
Overview
The High-Speed Barrier Gate uses an integrated electromechanical design to provide an efficient, stable, and durable automatic boom barrier system solution for parking entrances and exits.
- Built with a 24V DC brushless motor and planetary gear transmission, it supports 1–6s adjustable opening and closing speed, with smooth arm movement and low heat generation during frequent operation.
- Supports multiple barrier arm types, including straight arms, fence arms, foam arms, and folding fence arms, with optional LED light arms to improve lane visibility at night or in harsh weather.
- IP54 protection, -40°C to +85°C operating temperature, 5-million-cycle service life, loop anti-smashing, infrared/pressure wave expansion, and fire alarm linkage ensure long-term outdoor stability.
Features & Specifications
| Proudct Name | High-Speed Barrier Gate |
| Power Supply | AC 220V±10% |
| Rated power | 150W |
| Working Temperature | -40℃ to +85℃ |
| Protection Level | IP54 |
| Size | 333mm (L) x 307mm (W) x 982mm (H) |
| Network interface | RS485 / switch signal |
| Boom Opening And Closing Speed | 1-6s / 2-6s / 3-6s adjustable |
Applications
Plate Recognition Solution Example for Parking Lot
- Prime LPR Controller
- Gate Barrier System
- Voice Parking Help Point Terminal
