Essential Swing Barrier Turnstile

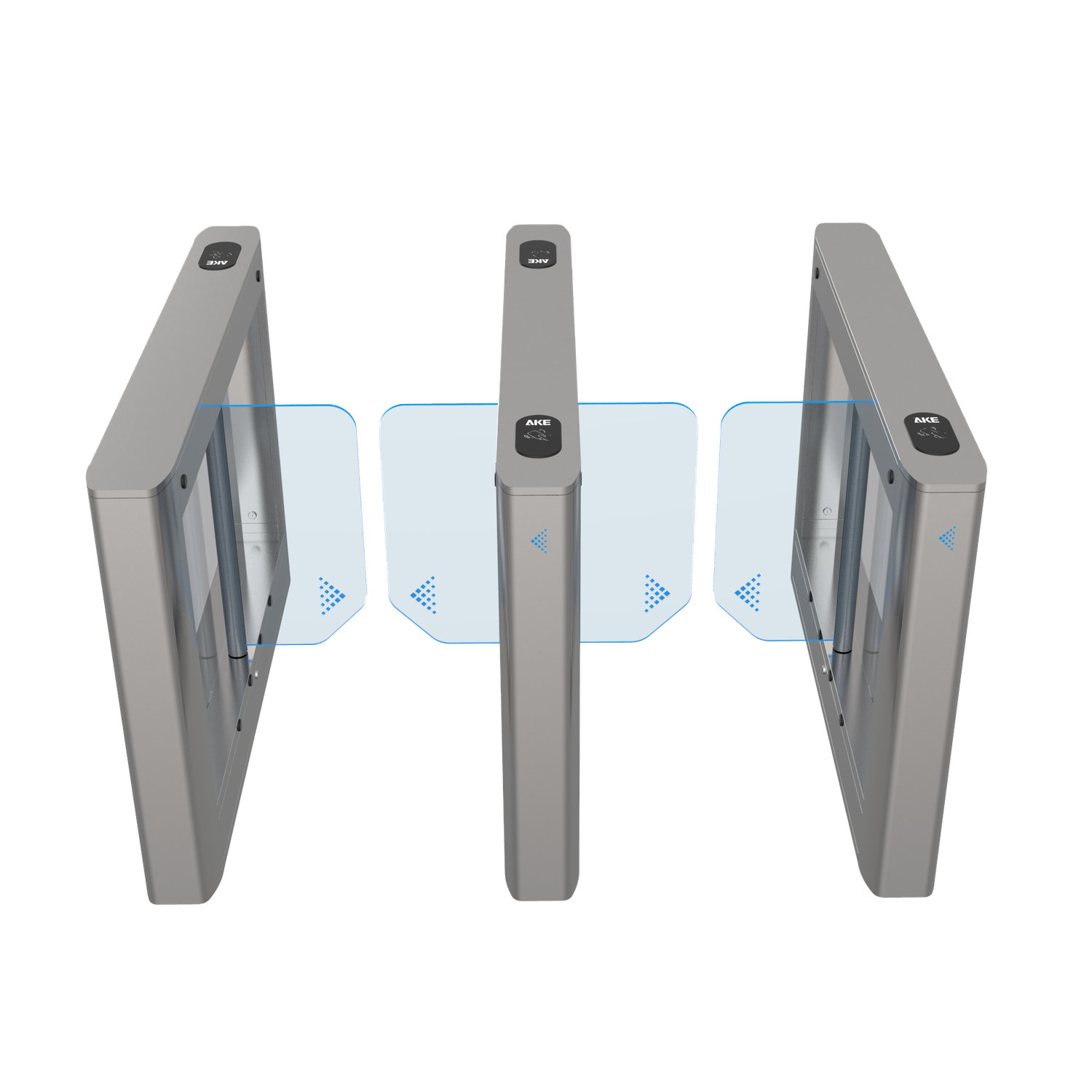

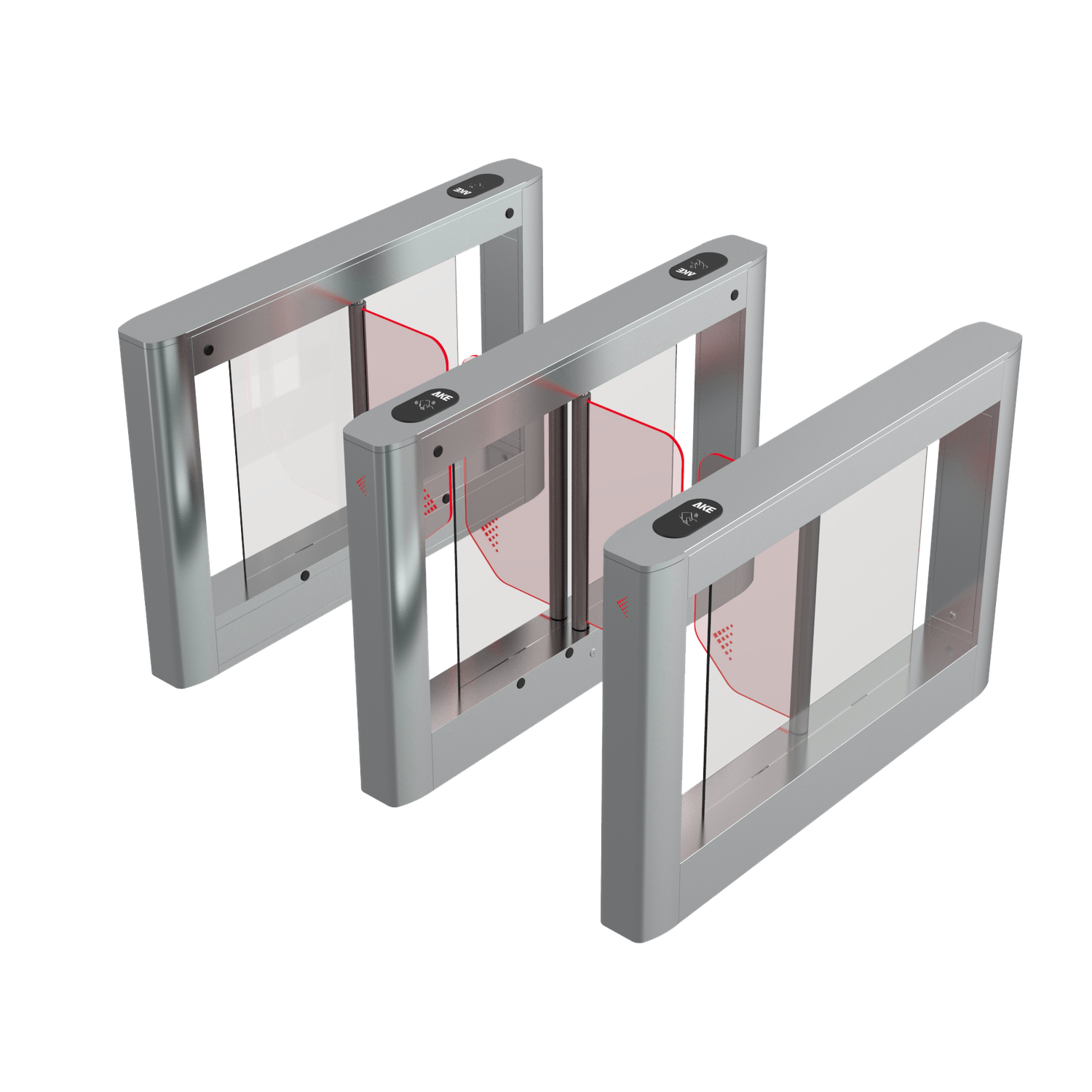

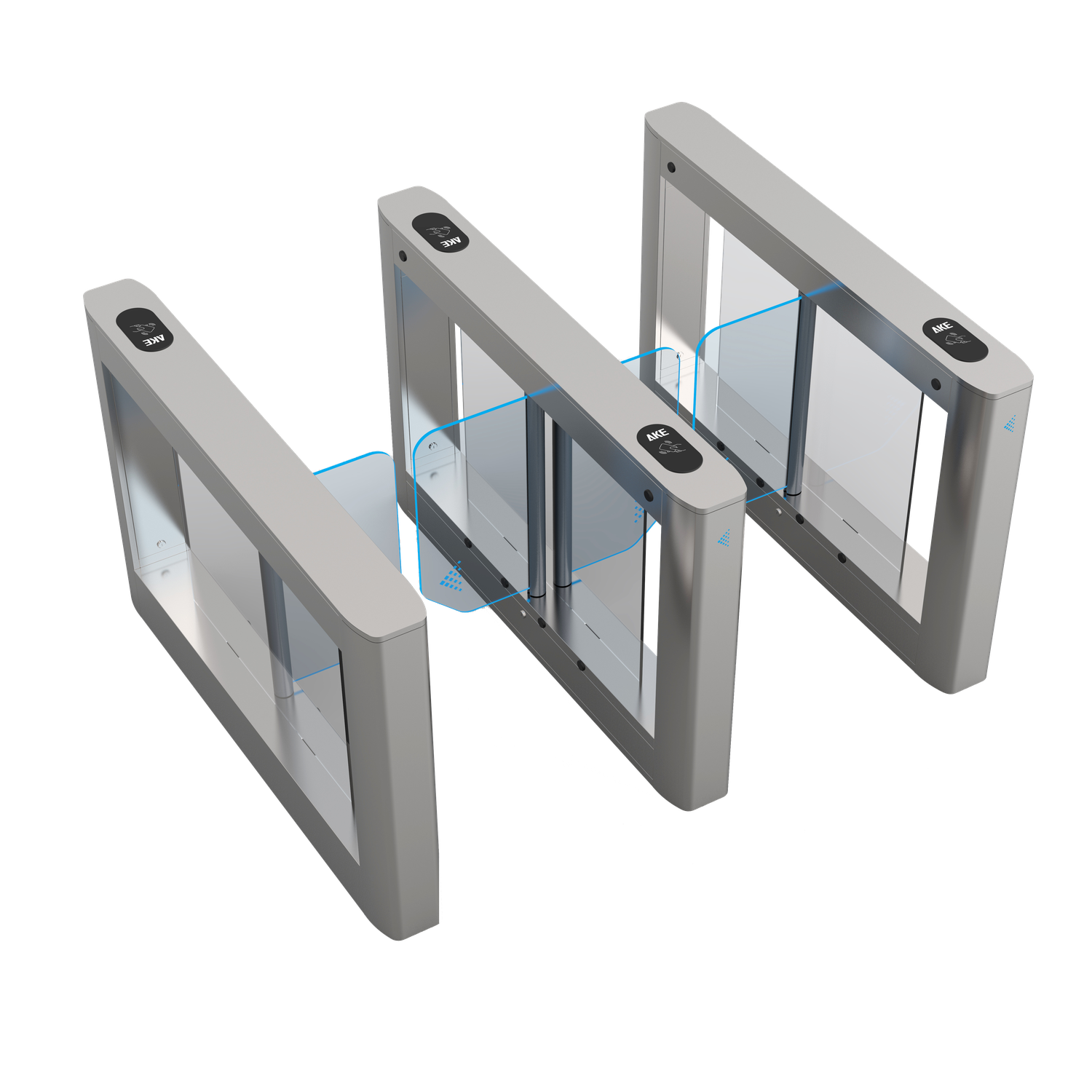

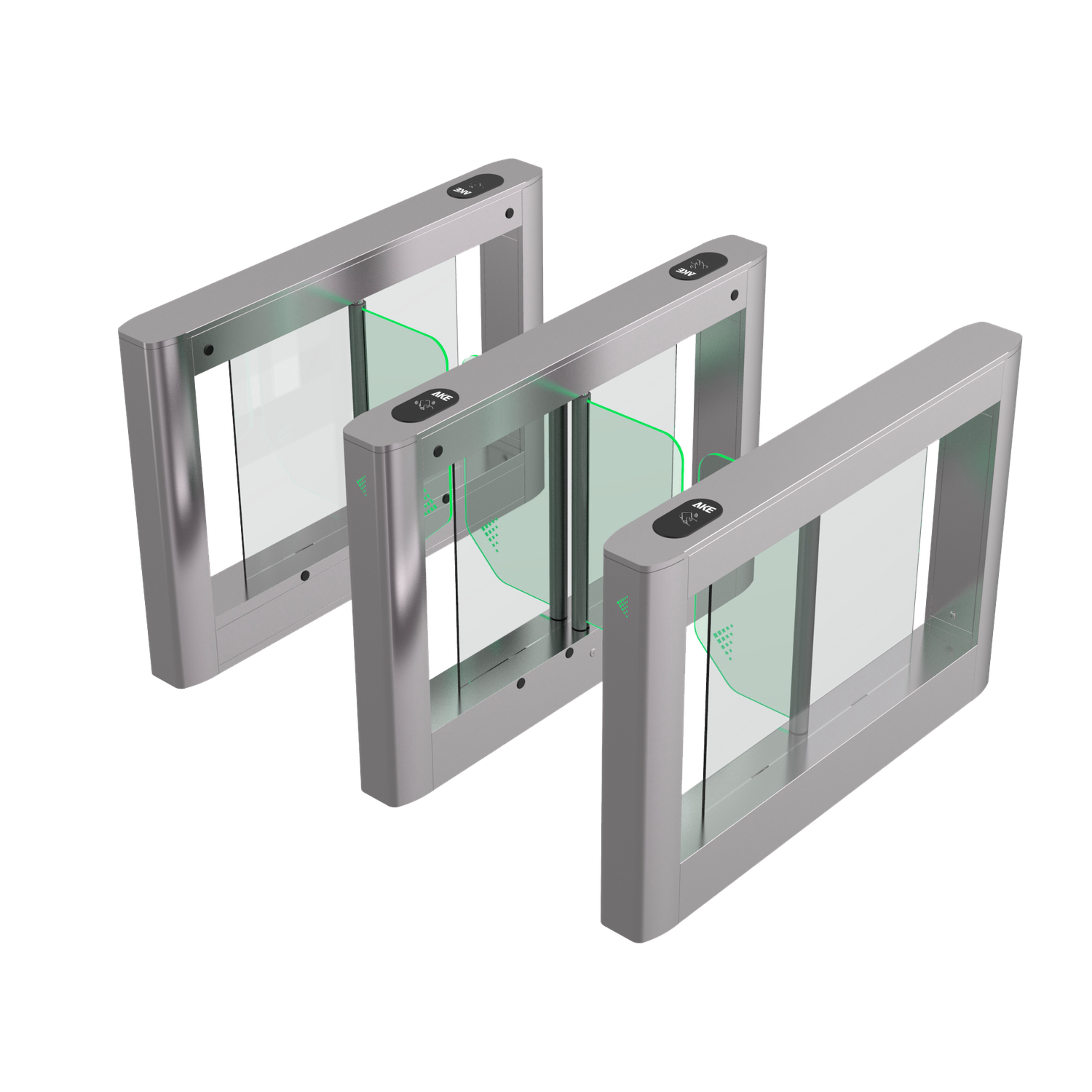

- The Essential Swing Barrier Turnstile is a cost-effective intelligent pedestrian swing barrier system for office buildings, industrial parks, schools, shopping malls, and indoor or canopy-protected outdoor entrances.
- Built with a brushed 304 stainless steel cabinet and a 24V DC brushless motor, it supports flexible single-core and dual-core configurations, with illuminated acrylic and stainless steel swing arm options. The stainless steel arm supports a passage width of up to 1100mm, making it suitable for accessible lanes and large luggage access. Branding, wholesale, and OEM supply are available for flexible turnstile price configurations.
Overview
Features & Specifications
Applications
Overview
The Essential Swing Barrier Turnstile integrates mechanical structure, electronic control, reader interfaces, and safety detection, making it a practical turnstile gate among different types of turnstile gates for wide-lane, accessible, and mid-to-high-end projects.
- Supports single-core and dual-core configurations, with multiple passage modes such as card access and sensor-based opening, and can connect to access control, ticketing, and remote management systems through RS485 and dry contact/switch signal interfaces.
- Standard 6 pairs of infrared sensors, together with physical rebound on obstruction, anti-impact locking, unauthorized entry/tailgating audible and visual alarm, and timeout auto-reset, provide dual anti-pinch protection for children, luggage users, and peak-hour passage.
- Brushed 304 stainless steel cabinet, 24V DC brushless motor, and 35 persons/min controlled passage speed, combined with 600–900mm illuminated acrylic arms or 600–1100mm stainless steel wide-lane arms, meet different project requirements for passage width and appearance configuration.
Features & Specifications
| Product Name | Essential Swing Barrier Turnstile |
| Power Supply | AC 220V, 50Hz |
| Motor Type | 24V brushless DC motor |
| Material | Brushed 304 stainless steel |
| Communication Interface | RS485 |
| Passage Width | Acrylic: 600-900 mm; stainless steel: 600-1100 mm |
| Infrared Sensors | Standard 6 pairs |
| Working Temperature | -25°C to +70°C |
| Advertising Lightbox | Double-sided high-brightness backlit LED advertising area |
| Adjustable Access Time | 10 s; adjustable from the main control board |
| Protection Rating | IP45 |
| Passage Speed | 35 persons/minute |
| Product Dimensions | 1400×160×980 mm |
