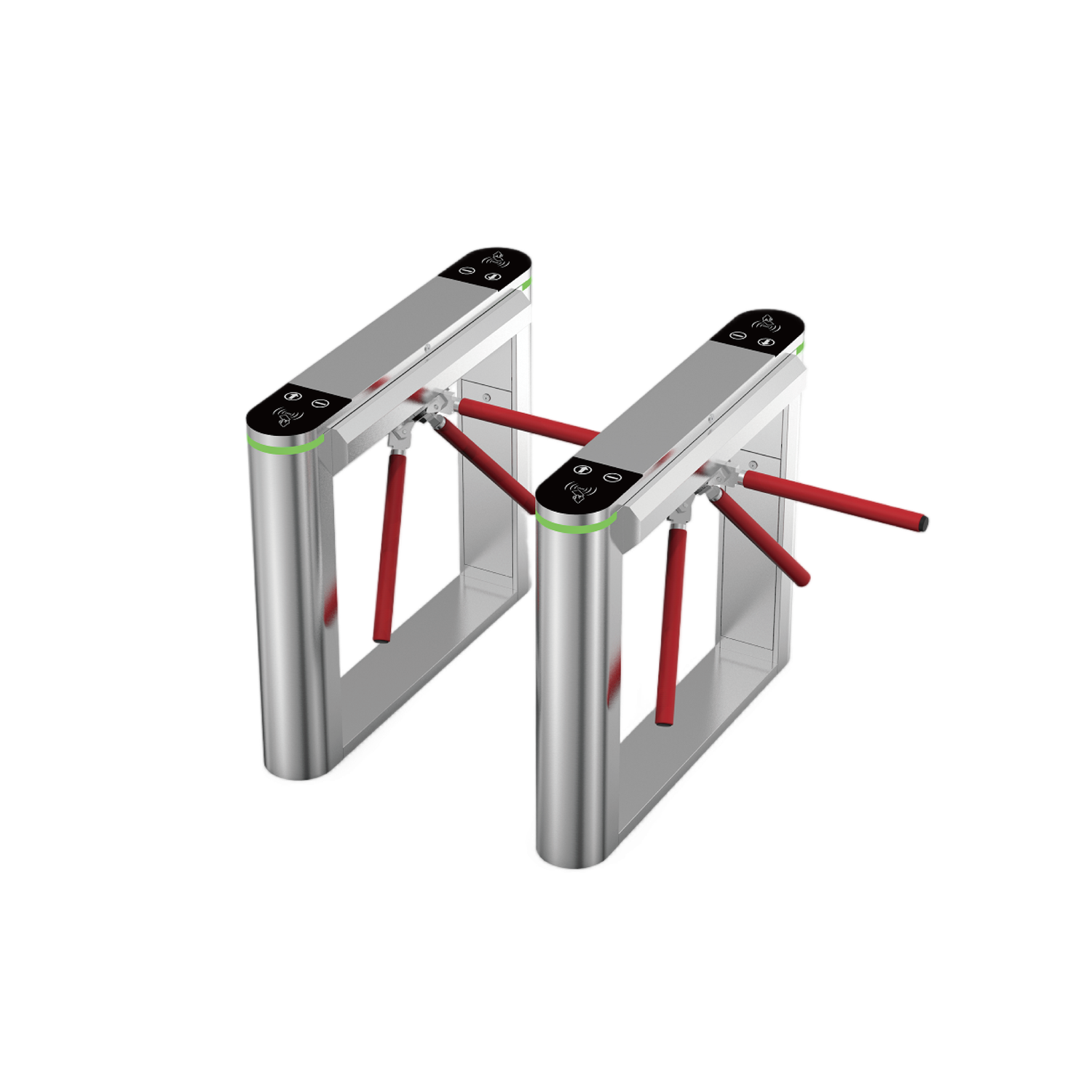

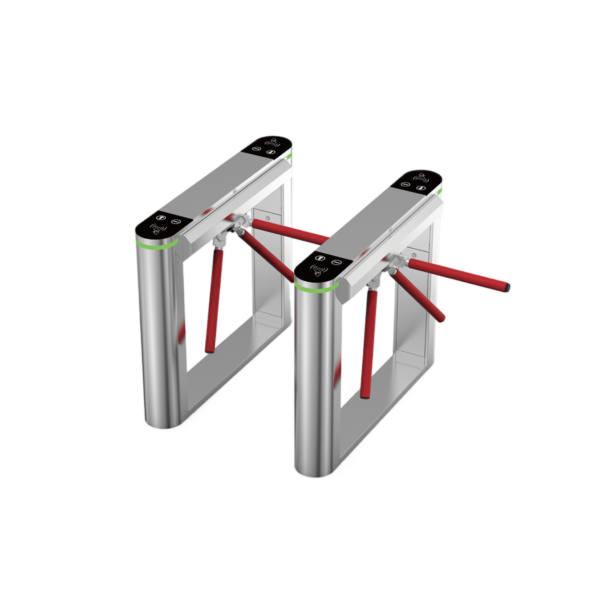

Bridge Tripod Turnstile
We develop creative, comprehensive, and sustainable engineering solutions for a future where society can thrive.
Bridge Tripod Turnstile
- The Bridge Tripod Turnstile is a bridge-type tripod turnstile for pedestrian access management, suitable for factories, scenic areas, enterprises, construction sites, schools, and indoor or outdoor entrances.
- Built with laser-welded SUS304 stainless steel, it offers a strong and durable structure, while supporting one-way/two-way passage, card reader integration, and automatic arm drop during power failure. It helps contractors and system integrators build a reliable turnstile entry system. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Bridge Tripod Turnstile integrates mechanical structure, electronic control, microprocessor control, and reader interface support, providing stable and orderly turnstile gate access management for pedestrian entrances.
- Supports one-way or two-way passage, with a mechanical locking device, precision mechanism, and anti-reverse rotation function to prevent unauthorized reverse access and improve on-site control in a turnstile system.
- SUS304 stainless steel housing with laser-welded construction provides rust resistance and long-term durability; IP54 protection and -25°C to +80°C operating temperature support indoor and outdoor use.
- Standard electrical interfaces allow integration with barcode, ID card, and IC card readers; automatic arm drop during power failure and fire linkage keep the passage open in emergencies for fast evacuation.
Features & Specifications
| Product Name | Bridge Tripod Turnstile |
| Power Supply | 100V-240V |
| Rated Power | 30 W~50 W |
| Working Temperature | -25°C to +80°C |
| Passage Width | 550mm |
| Material | SUS304 stainless steel; top cover 1.2 mm; body 1 mm |
| Barrier Interception Height | 850mm |
| Protection Rating | IP54 |
| Product Dimensions | 1200×185×980 mm |
Applications
