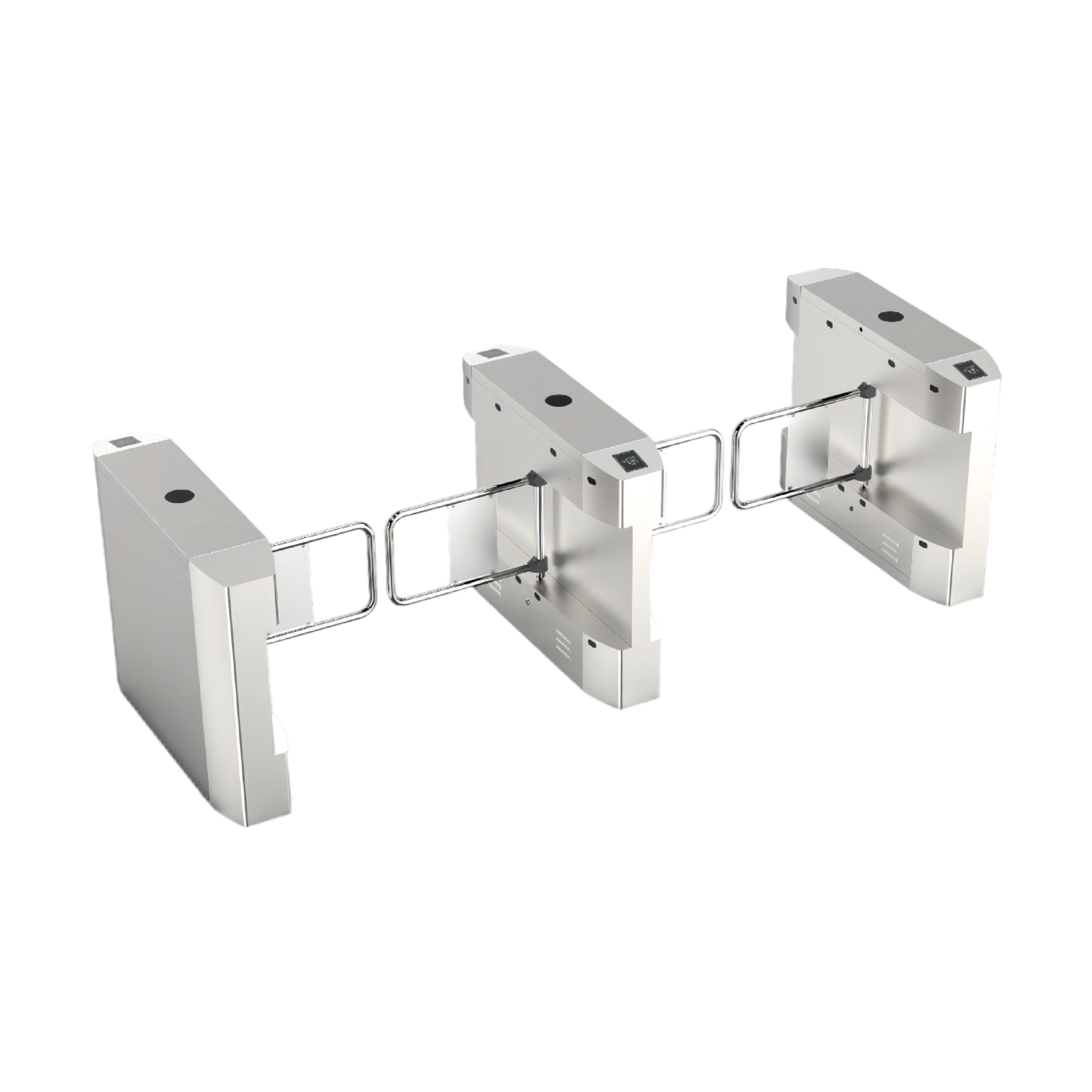

Basic Swing Barrier Turnstile
- The Basic Swing Barrier Turnstile is a multifunctional intelligent swing barrier system for mixed pedestrian and vehicle access, suitable for smart communities, logistics parks, enterprise gates, and indoor or outdoor entrances shared by pedestrians and two-wheel vehicles.
- Built with a 1.2mm 304 stainless steel cabinet and a 24V DC brushless motor, it supports a 650–1200mm ultra-wide stainless steel swing arm and can be expanded for electric bicycle access, helping contractors build a more flexible and practical turnstile entry system. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Basic Swing Barrier Turnstile integrates intelligent control, reader integration, safety detection, and wide-lane access capability, making it a practical turnstile gate among different types of turnstile gates for community bicycle entrances and mixed pedestrian-vehicle access in parks or campuses.
- Supports IC/ID card, RFID, ID card, QR code, and face recognition device integration, with one-way/two-way and controlled/sensor-based passage modes to meet different management needs in communities, parks, and factory areas.
- The 650–1200mm ultra-wide stainless steel swing arm supports wheelchair, large luggage, and two-wheel electric vehicle access, with optional electric bicycle passage expansion to solve the limitations of conventional pedestrian-only turnstiles.
- A 1.2mm 304 stainless steel cabinet, 24V DC brushless motor, backup battery for automatic opening during power failure, fire linkage, audible and visual alarm, and 4 pairs of infrared anti-pinch sensors provide stable and safe operation for high-frequency and outdoor access scenarios.
Features & Specifications
| Product Name | Basic Swing Barrier Turnstile |
| Power Supply | AC 220V ± 10V, 50 Hz |
| Motor Type | DC 24V brushless motor |
| Material | 304 stainless steel, 1.2 mm thick |
| Communication Interface | RS232; RS485 reserved |
| Passage Width | 650–1200 mm optional |
| Interception Height | 833 mm |
| Infrared Sensors | 4 pairs standard; 6 or 8 pairs optional |
| Working Temperature | -20°C to +70°C |
| Passage Speed | 25–30 persons/minute |
| Protection Rating | IP54 |
| Product Dimensions | 1200 × 280× 980 mm |
