All-in-One LPR Barrier System
We develop creative, comprehensive, and sustainable engineering solutions for a future where society can thrive.
All-in-One LPR Barrier System
- The All-in-One LPR Barrier System is an intelligent all-in-one terminal for high-end parking entrances and exits, suitable for commercial complexes, office buildings, residential communities, industrial parks, and other high-traffic vehicle access scenarios.
- As a professional automatic boom barrier system, it combines vehicle recognition, automatic access control, and information display in one device. OEM, wholesale, and customization services are available for system integrators, project contractors, and security equipment suppliers.
Overview
Features & Specifications
Applications
Overview

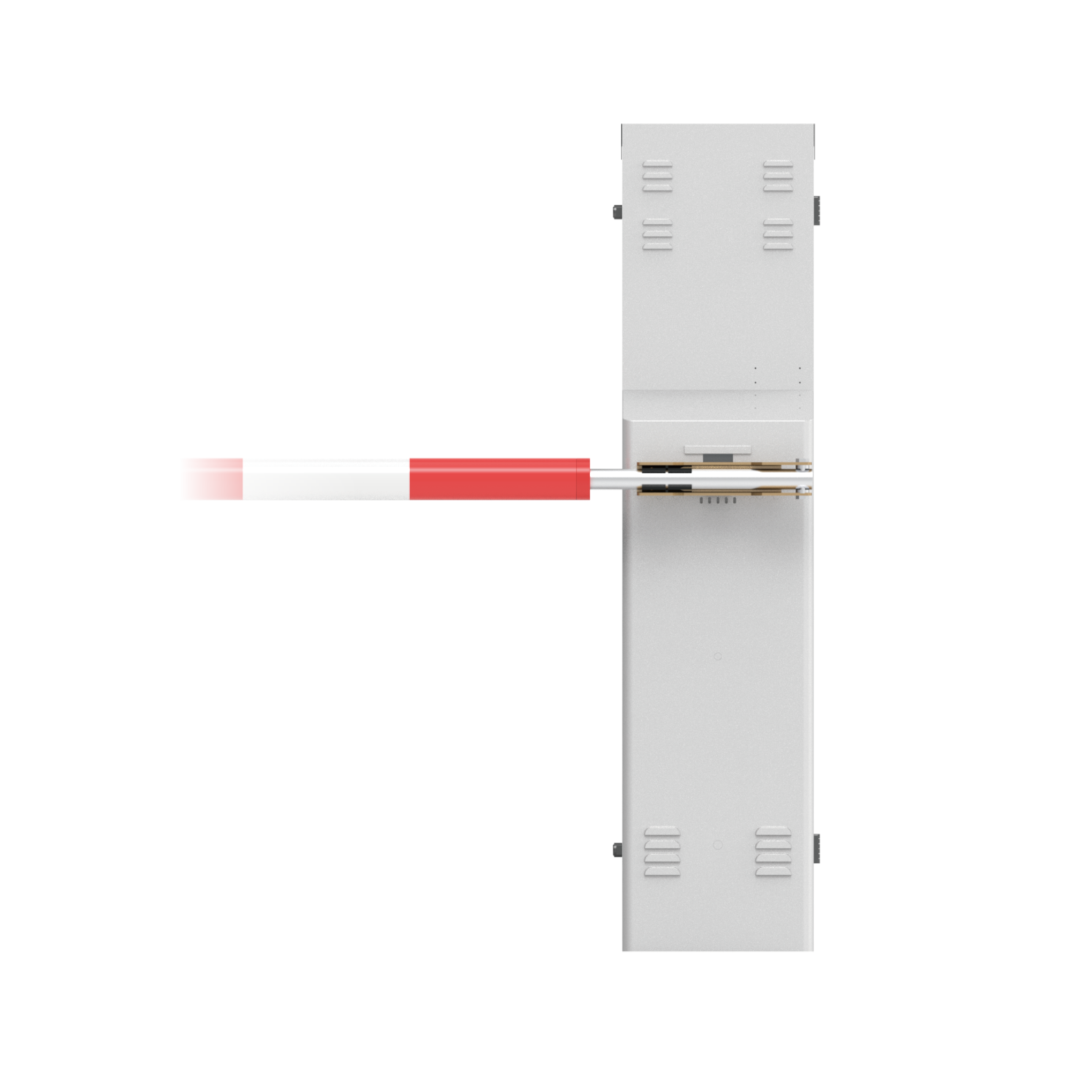

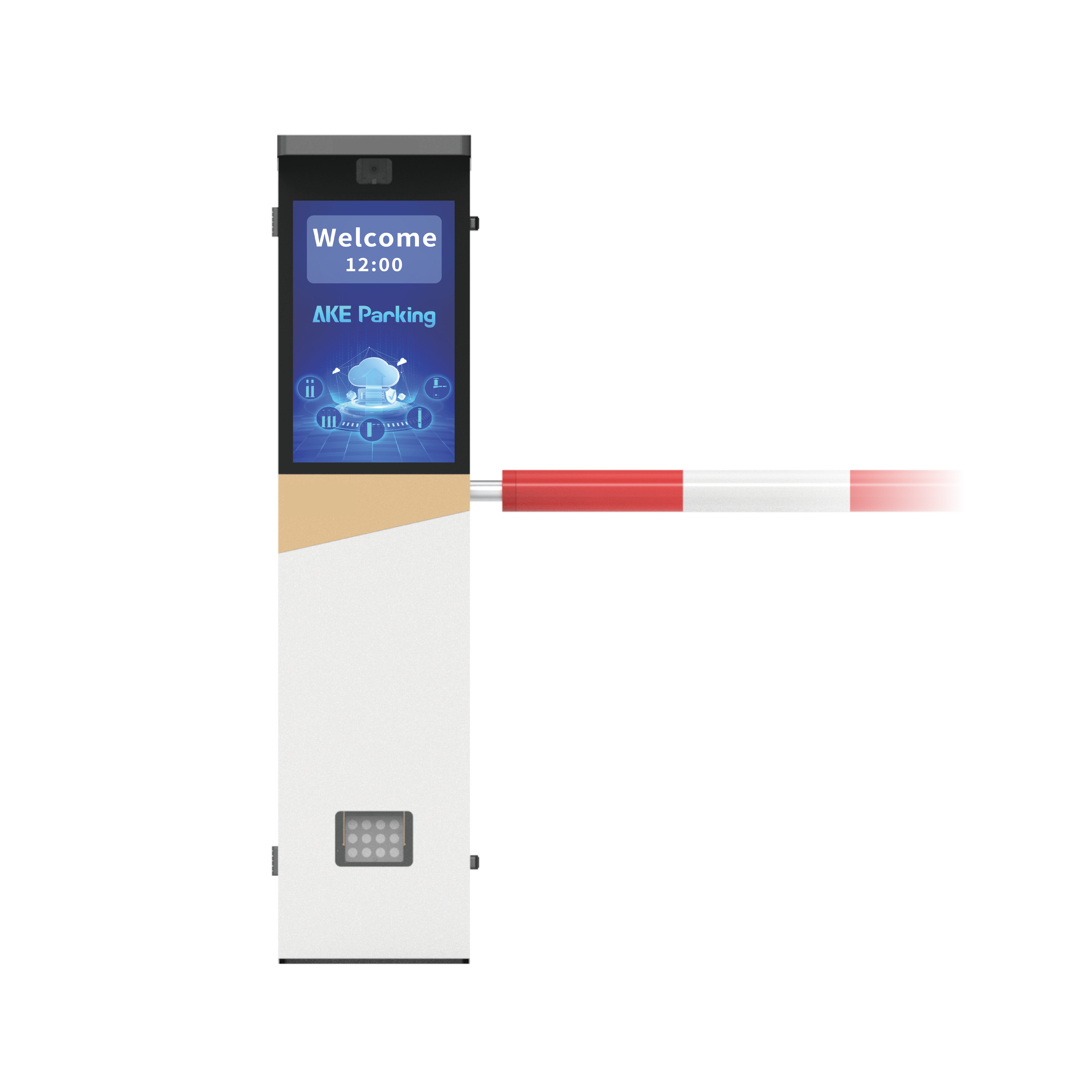

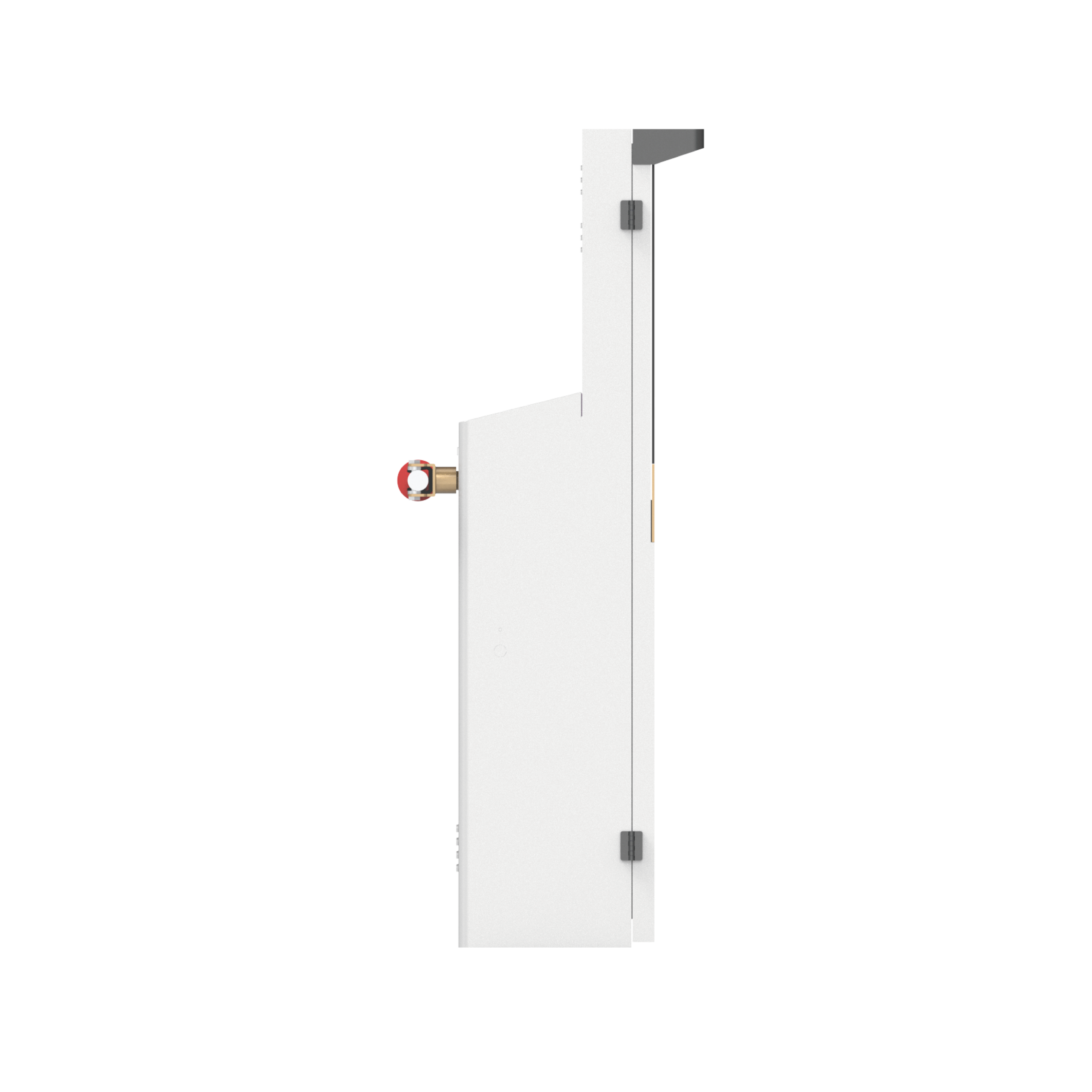

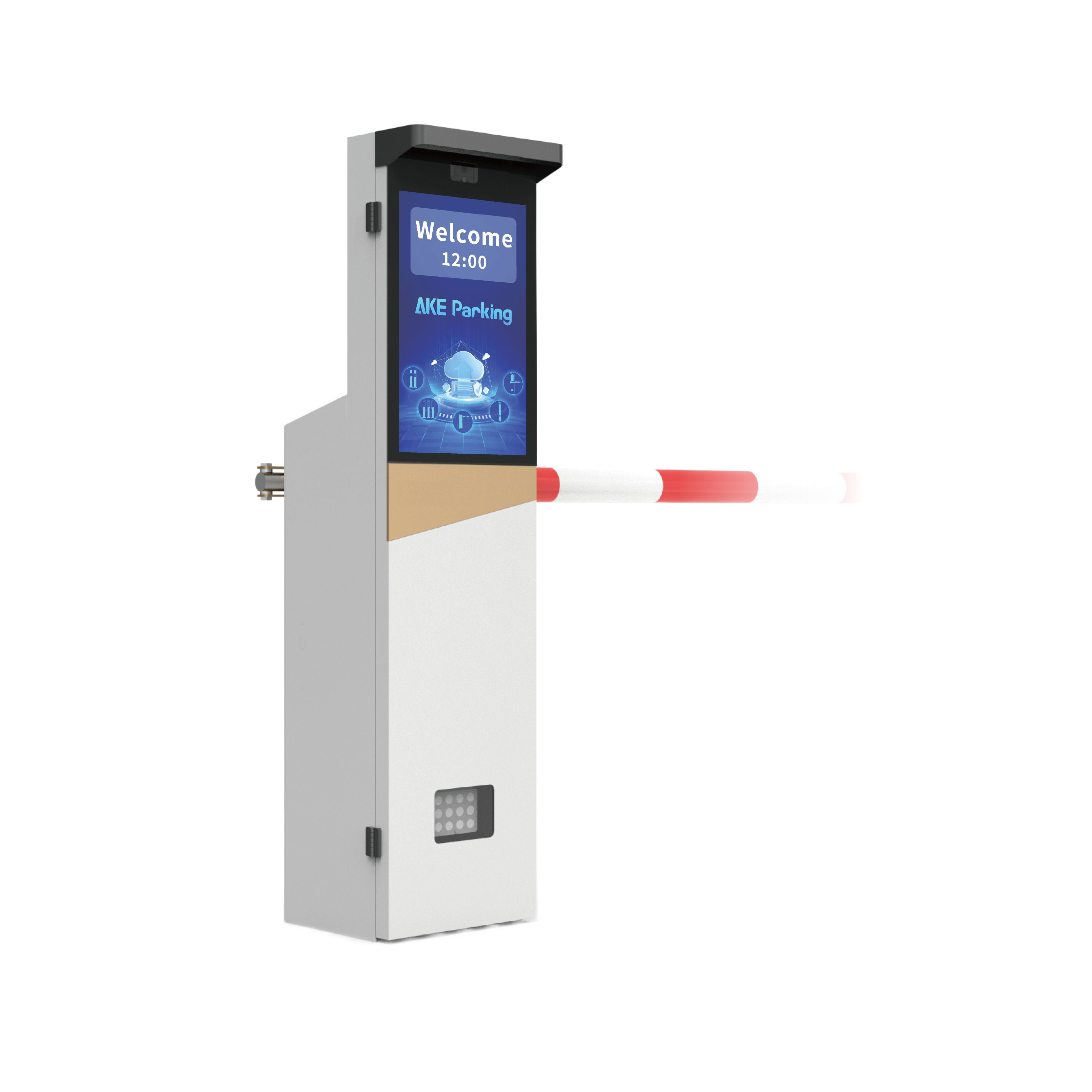

The All-in-One LPR Barrier System integrates an anpr camera, boom barrier system, multimedia display, and voice interaction, providing an efficient and stable entrance management solution for smart parking projects.
- Built-in 5MP HD anpr camera with a 6mm zoom lens, 12 high-brightness LED fill lights, and a 21.5-inch LCD screen supports multi-country license plate recognition, access notifications, advertising playback, and welcome message display.
- High-speed DC variable-frequency servo mechanism enables barrier opening as fast as 0.9 seconds, with straight, fence, and folding barrier arm options for different lanes and project environments.
- Supports TCP/IP, 4G, and RS485 communication for offline operation, cloud-based management, and OTA upgrades; IP54 protection, -25°C to +70°C operating temperature, and multiple anti-smashing and anti-collision protections ensure long-term outdoor stability.
Features & Specifications
| Product Name | All-in-One LPR Barrier System |
| Power Supply | AC 220 V ±10% |
| Rated Power | 300W(MAX) |
| LPR Camera Pixels | 5 MP |
| License Plate Recognition Rate | ≥99.9% in recognition; ≥99.9% in accuracy |
| Product Dimensions | 1490 mm (H) x 345 mm (L) x 357 mm (W) |
| Communication | TCP/IP、4G |
| Protection Rating | IP54 |
| Working Temperature | -20°C to 70°C |
| Network Interface | RS485 |
| Display | 21.5″LCD:1920 x 1080 (Full HD) |
| Display QR code | Supported |
Applications

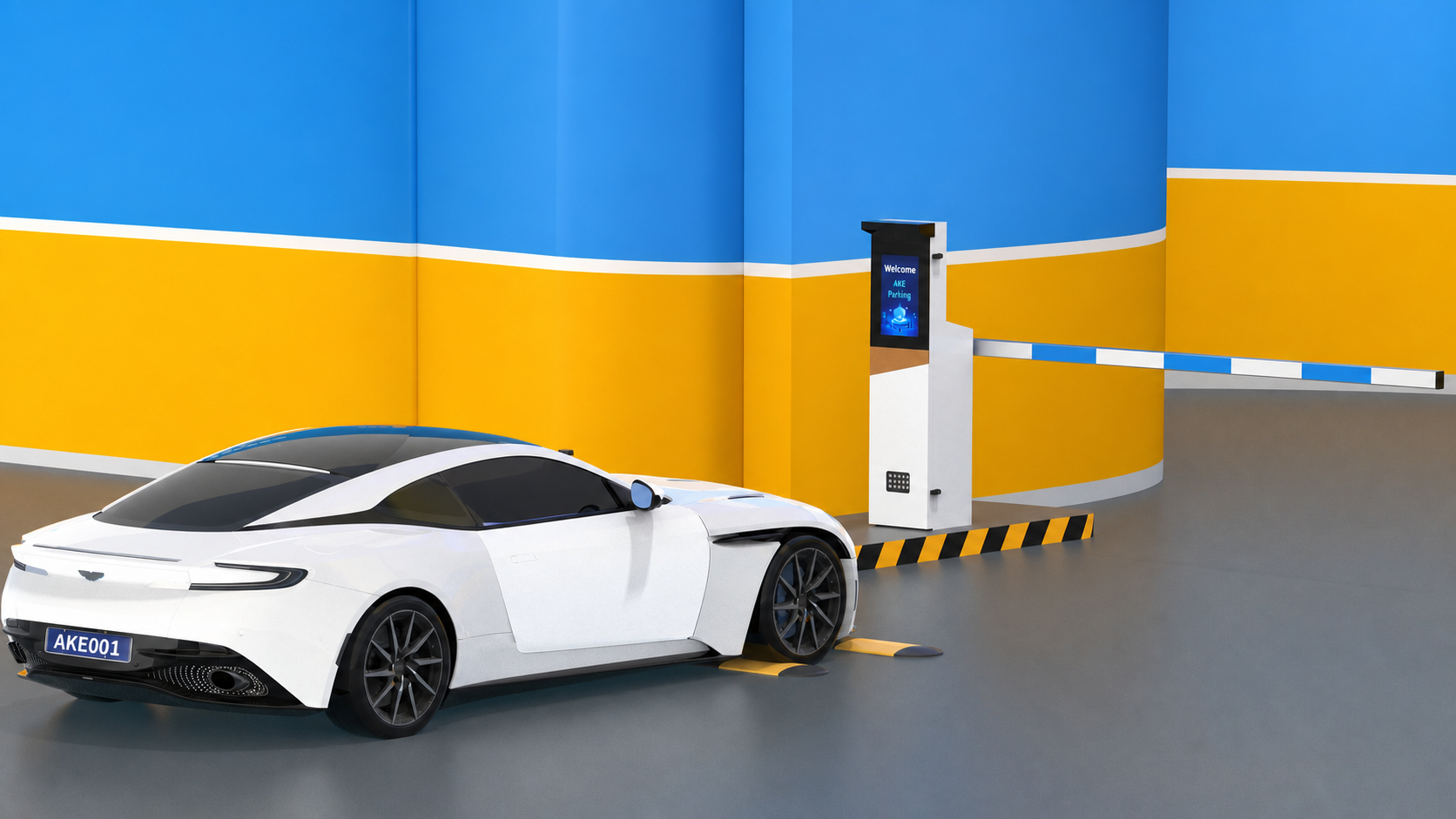

All-In-One Solution Example for Parking Lot
Get a Custom Quote
Ready to start your smart parking project? Submit your requirements, and our team will deliver a tailored solution and competitive quote.
