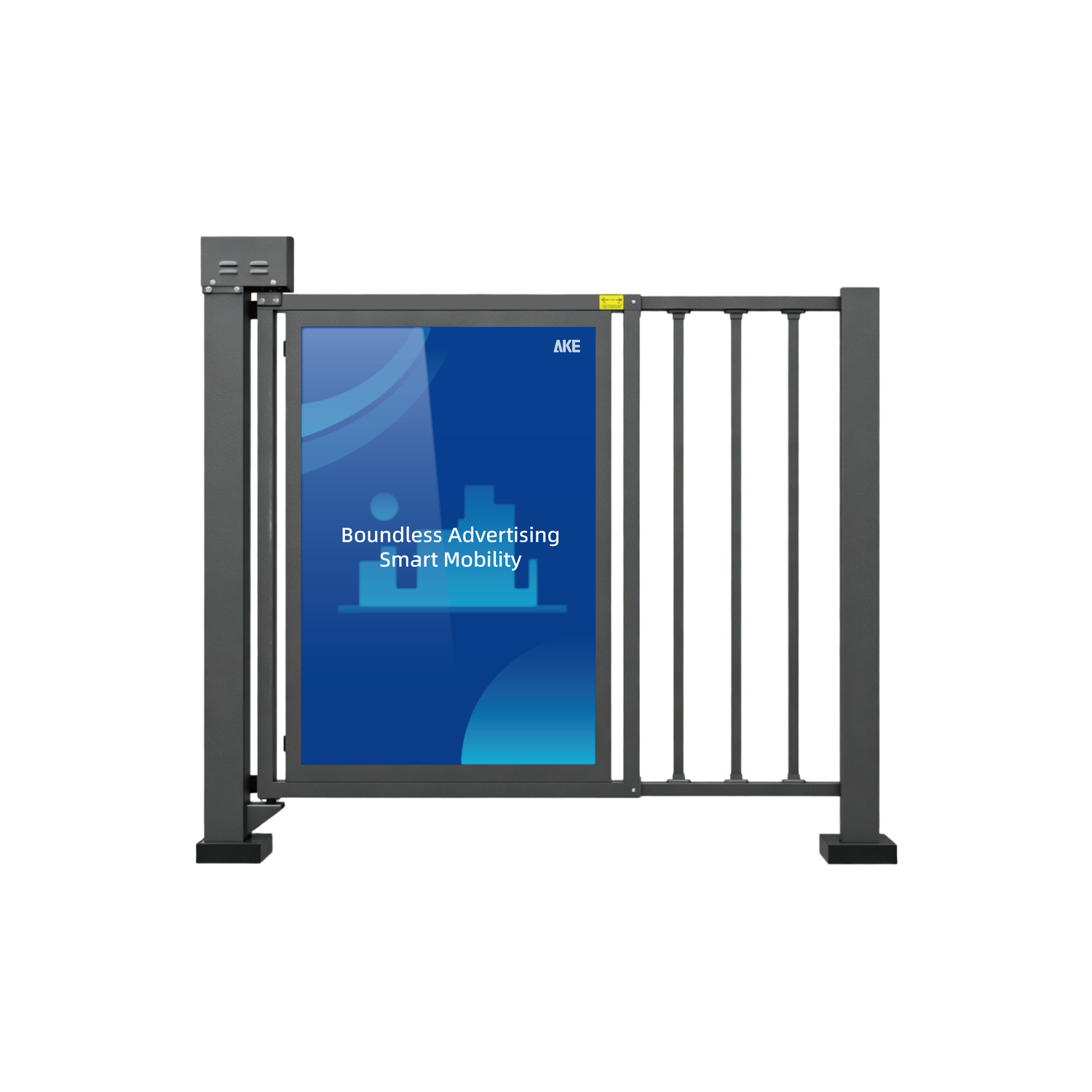

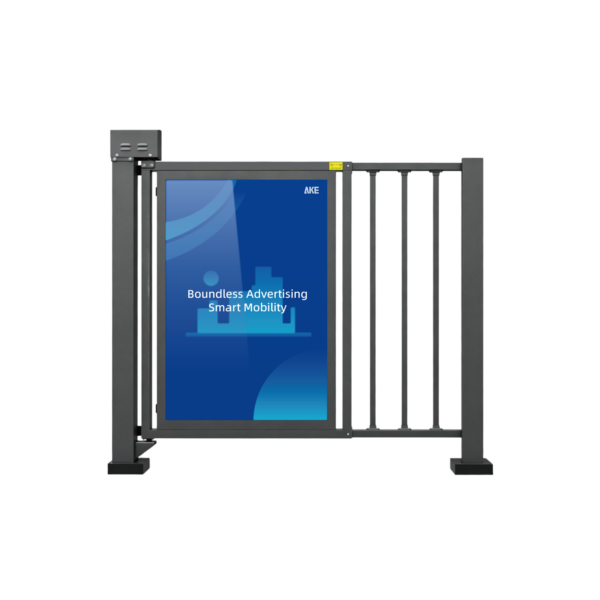

Advertising Swing Gate
- The Advertising Swing Gate is a commercial-grade intelligent pedestrian advertising gate for residential communities, commercial streets, industrial parks, enterprises, and indoor or outdoor pedestrian entrances.
- It combines pedestrian access control with a dual-sided LED backlit advertising lightbox, supporting integration with card access, QR code, and face recognition systems while providing valuable media display space for property managers and advertising operators. A 24V DC brushless motor, IP54 outdoor rainproof design, and fire linkage make it a swing barrier gate solution that combines access security with commercial value. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Advertising Swing Gate integrates intelligent access control, advertising display, fire linkage, and outdoor rainproof structure, providing a swing barrier gate turnstile solution with both passage management and media value for communities, parks, and commercial areas.
- The central gate body uses a dual-sided high-brightness LED backlit advertising lightbox to display advertisements, brand messages, and property notices, helping property managers, park operators, and media companies increase entrance commercial value.
- A 24V DC brushless motor ensures smooth operation, low noise, and precise speed control, while anti-impact locking, timeout auto-reset, fault self-check, and external anti-pinch device linkage improve daily access safety.
- IP54 outdoor rainproof design, -35°C to +75°C operating temperature, fire linkage, and dry contact opening interface support indoor and outdoor project deployment, while allowing bulk procurement and customization for different turnstile price budgets.
Features & Specifications
| Product Name | Advertising Swing Gate |
| Power Supply | AC 220V±10%, |
| Motor Type | 24V brushless DC motor |
| Material | High-strength thickened body; welded steel plate / sprayed finish |
| Working Temperature | -35°C to +75°C |
| Advertising Lightbox | Double-sided high-brightness backlit LED advertising area |
| Adjustable Access Time | 10 s; adjustable from the main control board |
| Protection Rating | IP54 |
| Passage Speed | 30 persons/minute |
| Product Dimensions | 1400×220×1400 mm |
