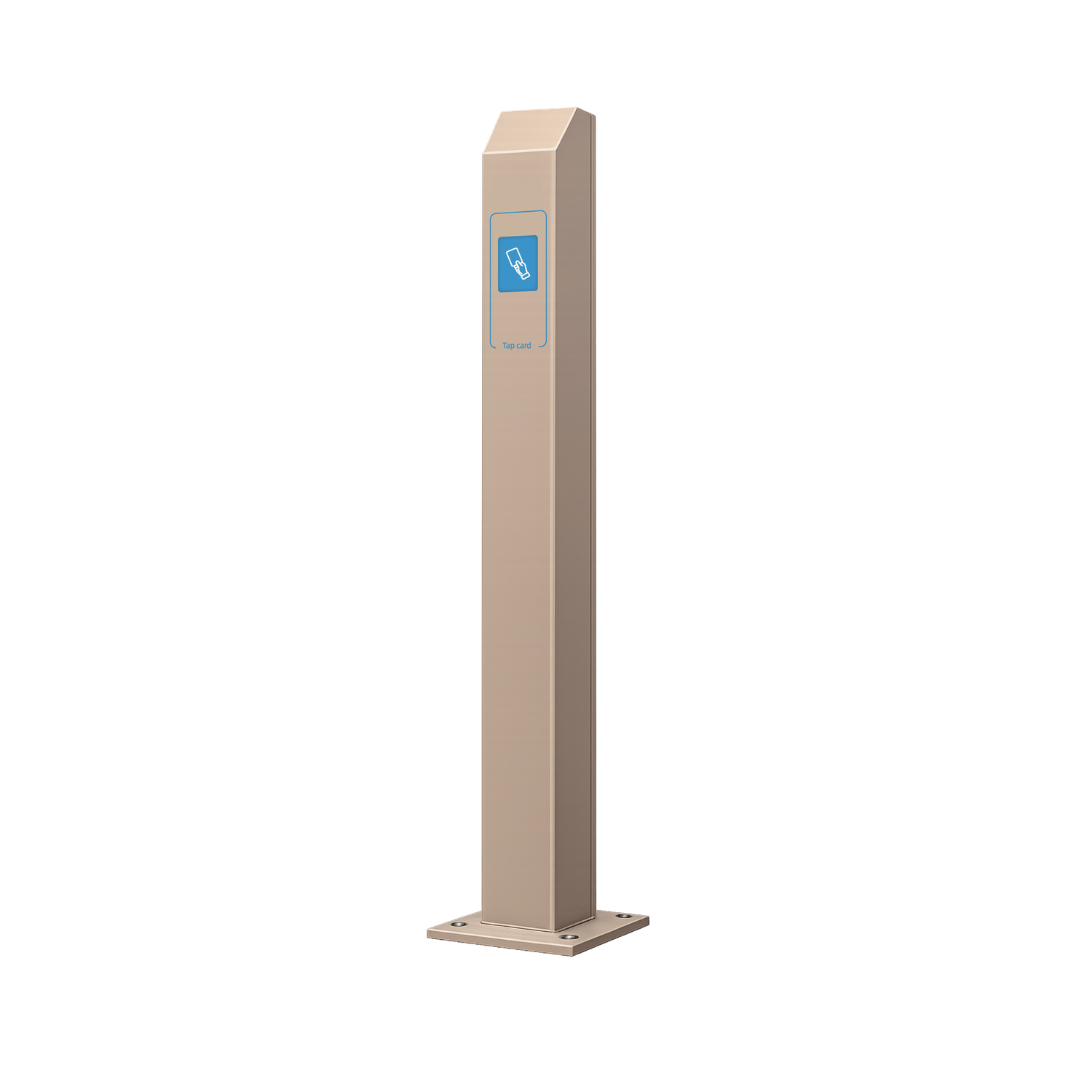

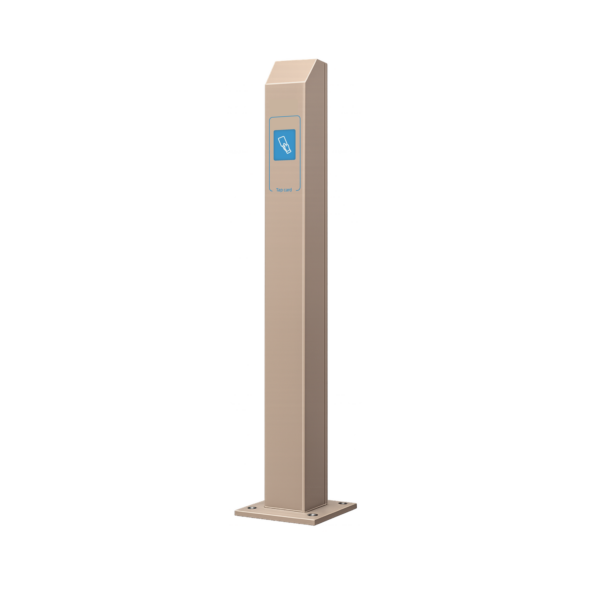

Access Control Reader Post
- The Access Control Reader Post is an intelligent access control reader post for smart communities, office building side entrances, park pedestrian entrances, enterprise access points, and locations where large turnstiles are not suitable.
- It integrates card recognition, permission management, TCP/IP communication, access record storage, alarm input, and fire linkage, serving as a lightweight access control entry system terminal that helps contractors manage pedestrian access with lower installation costs. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The Access Control Reader Post uses a compact post design, fast card recognition, and network-based permission management to provide flexible entrance control for access control systems for office buildings, community side gates, and park pedestrian entrances.
- Supports IC/ID/serial number recognition, with a card reading time of <0.2s and a 3–5cm reading distance; local storage supports 20,000 whitelist users and 100,000 access records for daily personnel management in medium and large projects.
- TCP/IP communication supports permission setting, modification, deletion, recovery, and access record collection, while allowing administrators to monitor door status in real time for centralized management and later access control system maintenance.
- A slim 1100mm×125mm×95mm post design saves installation space, while IP54 protection, 1 door sensor input, 1 alarm input, NO/NC lock signal, and built-in fire linkage make it suitable for side entrances, building perimeter access, and outdoor pedestrian control.
Features & Specifications
| Product Name | Access Control Reader Post |
| Size | 1100 mm x 125 mm x 95 mm |
| Power Supply | DC12V |
| Rated Power | 10W(MAX) |
| Working Temperature | -10°C to +65°C |
| Protection Rating | IP54 |
| Access Mode | IC/ID/serial number (Mifare 13.56MHz) |
| Card Reading Distance | 3 ~ 5 cm |
| Communication Interface | TCP/IP |
| Access Record Quantity | 100,000 |
| Whitelist Quantity | 20,000 |
Applications
