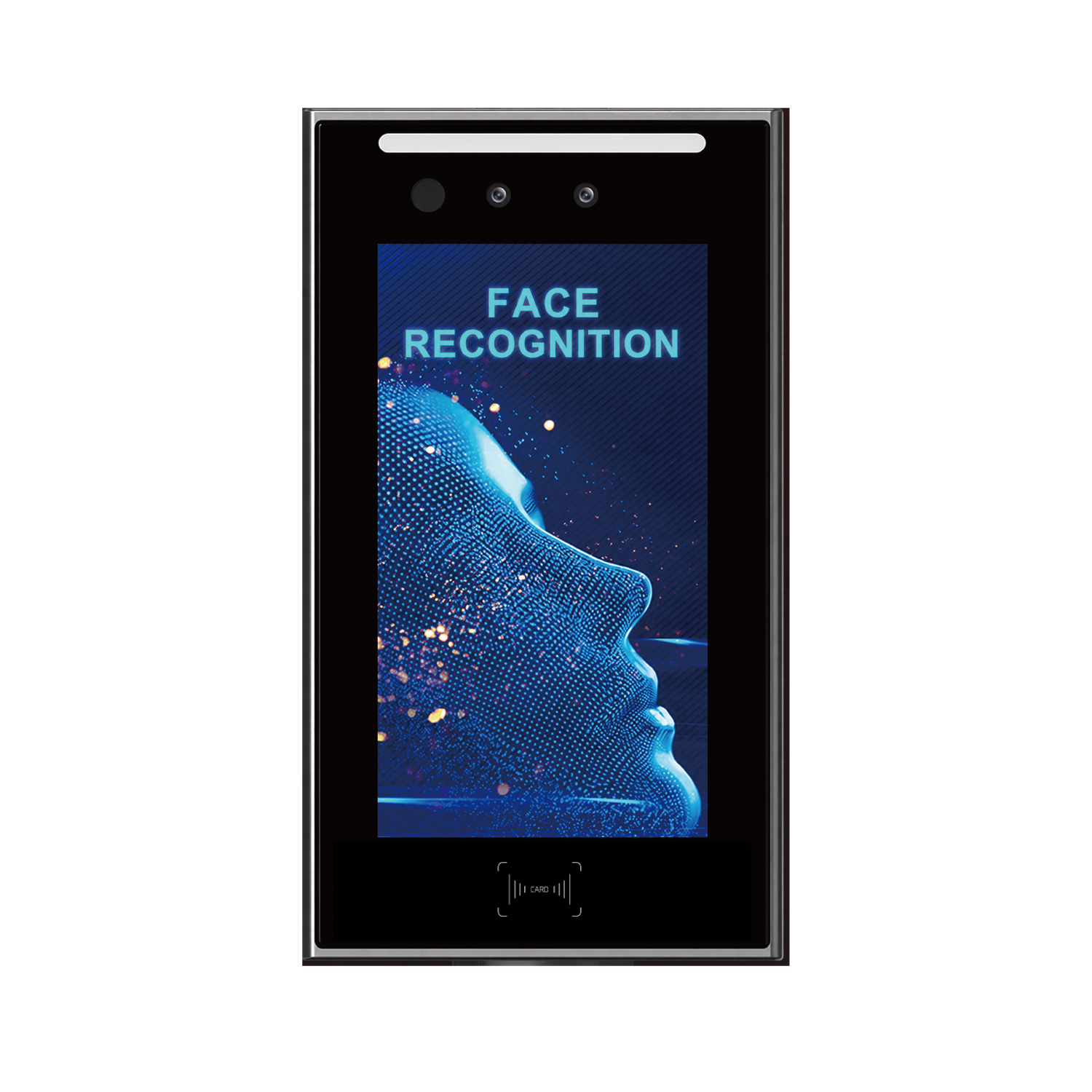

7-inch Face Recognition Terminal
- The 7-inch Face Recognition Terminal is a high-performance intelligent facial recognition terminal for turnstiles, office buildings, smart parks, enterprises, and indoor or outdoor pedestrian access scenarios.
- It supports face, IC/ID card, ID card, and combined verification methods, with 50ms-level fast recognition and IP67 protection, helping contractors and system integrators deploy stable face recognition access control solutions. Branding, wholesale, and OEM supply are available.
Overview
Features & Specifications
Applications
Overview
The 7-inch Face Recognition Terminal integrates face recognition, card verification, ID card recognition, liveness detection, and turnstile linkage, providing fast and secure personnel access management for face recognition access control terminal projects.
- Equipped with 2MP RGB + 2MP IR dual cameras and neural network algorithms, it delivers ≥99.9% face recognition accuracy, ≤50ms non-liveness recognition, and ≤80ms liveness recognition to reduce peak-hour entrance congestion.
- Supports a 30,000-face local database and 100,000 offline recognition records, with a 99.99% non-liveness rejection rate to defend against photo, video, and printed image attacks.
- A 7-inch IPS HD screen, Linux system, 4G/WiFi/RJ45 network support, IP67 protection, and -20°C to +70°C operating temperature make it suitable for face recognition biometric attendance system and indoor/outdoor access control integration.
Features & Specifications
| Product Name | 7-inch Face Recognition Terminal |
| Size | 223 x 126 x 20 mm |
| Power Supply | DC12V/2A |
| Protection Rating | IP67 |
| Multi-Credential Authentication | Face + IC/MIFARE 13.56 MHz card; 125 kHz ID card not supported |
| Camera | 2 MP RGB + 2 MP IR, 1920 x 1080 |
| Screen Specification | 7-inch touch screen, 480 x 272 |
| System | Embedded Linux |
| CPU | High-performance embedded processor |
| Storage | 8 GB |
| Maximum User Quantity | 30,000 face profiles |
| Interfaces | RJ45*1, USB 2.0*1, switch output*1 |
| Network | 4G / WiFi / RJ45 |
Applications
