Indoor PGS-Ultrasonic Series


Ultrasonic PGS 3D rendering picture

What is Ultrasonic Parking Guidance System?


Ultrasonic parking guidance system provides visual indication to driver while searching for a vacant parking spaces: ultrasonic sensor at each space monitors real-time occupancy and reports by changing color of individual lighted space indicator. A green light signifies that the space is vacant while a red light indicates that the space is filled or already occupied. At the meantime, availability information will be accordingly updated on decision point signs. No more guess work for the driver as to which parking level has available spaces for parking.



How does it Works?

1st Layer: Data Acquisition

Ultrasonic sensor at each space forms system foundation. It detects parking status and reports to system contraller on R485 Bus.

2nd Layer: Deta Process&Transmission

System controller processes data acquired form ultrasonic sensor, update real-time information to associated signage, reports to upper layer on CAN Bus.

3rd Layer: Data Analysis

Host management software analyzes data and generates statistic reports. Browser-based architecture allows remote access to system

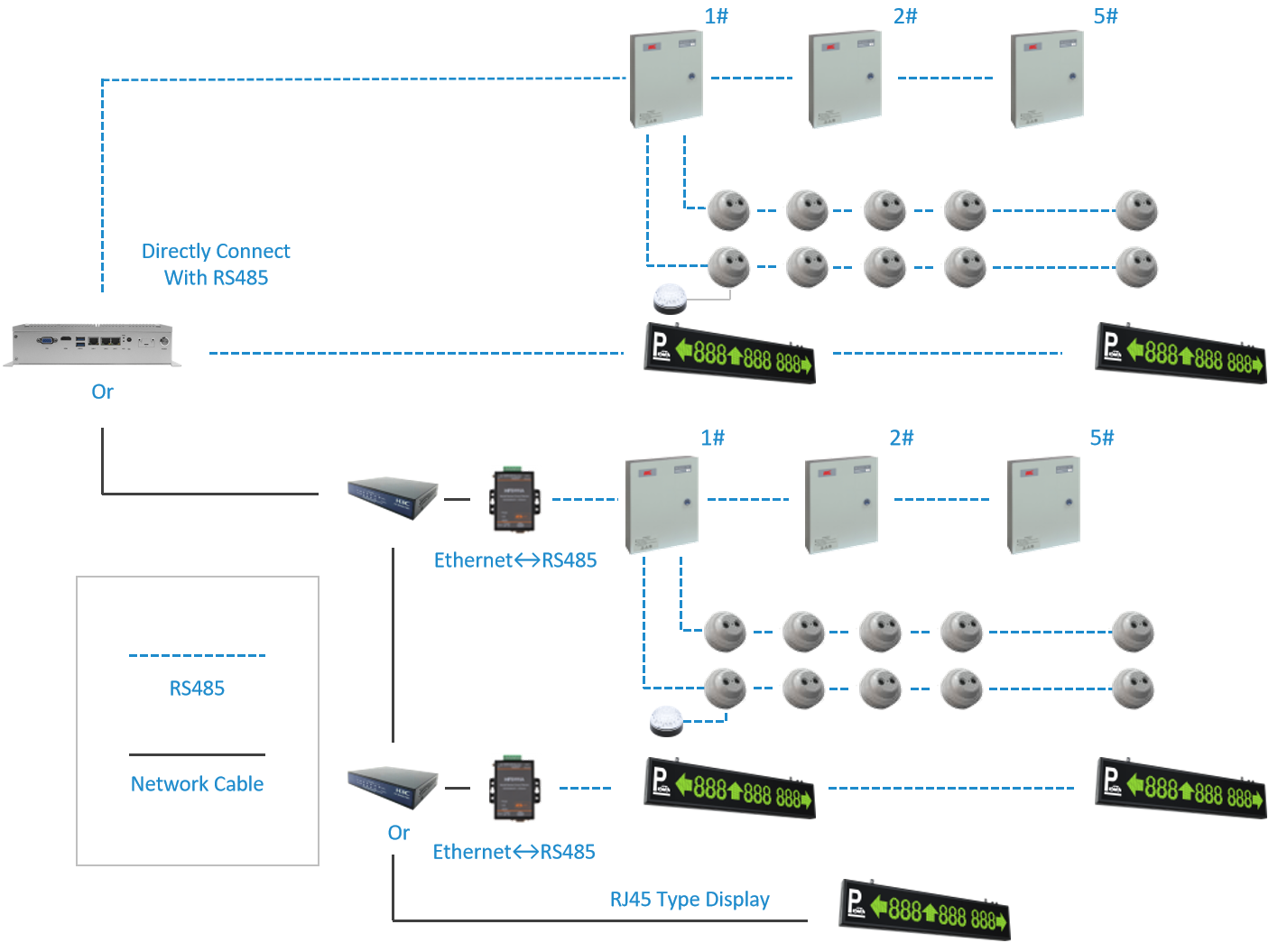

structure diagram for ultrasonic PGS system


Project Case

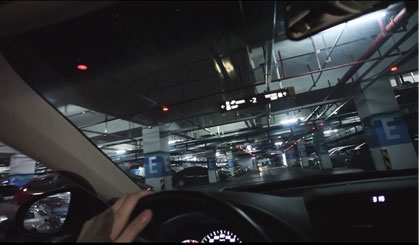

project case picture 1 for Ultrasonic parking    project case picture 2 for Ultrasonic parking

Diffence between regular sensor and integrated sensor


Diffence between regular sensor and integrated sensor

Further Information

  • As with our other solutions, AKE takes care of the installation process and offers various maintenance options. You can find out the details in our the solution brochure. Go to Download the Brochure

Typical case for indoor parking gudiance system

  • An ultrasonic parking guidance system reduces “time to find a space” by 44%, shown on an independent study by Arup (Australia) for Westiield Parramatia
  • Noticeably reduces congestion in the car park, allowing for faster exiting speed (by around 10%)
  • Creates 100% usage of the car park by making every space “visible” to the drivers with decision point signage
  • Less labor is required to manage the parking






Download the Installation Brochure
Work Process Video of Ultrasnoic Parking Guidance System
Close
Bidirectional Variable Message Sign Parameters
Model Size(mm) Weight(g) Power Input Guarantee
DIS-13R 720X232/1321X232/1683X232 4600/7500/9000 AC220V±10%, 60Hz 1 year
Integrated ultrasonic sensor Parameters
Model Size(mm) Weight(g) Power Input Guarantee
PUD-20R 100x125 200 DC24 1 year
External Signage Parameters
Model Size(mm) Weight(g) Power Input Guarantee
DHM-12R102R-16P12.5 400X200 2500 AC220V±10%, 60Hz 1 year
LED indicator Parameters
Model Size(mm) Weight(g) Power Input Guarantee
DIL-12RG/DIL-12RB 75X50 78 DC18V-24V 1 year
Ultrasonic sensors Parameters
Model Size(mm) Weight(g) Power Input Guarantee
PUD-11R 105X105X60 300 DC15-24V 1 year
