Indoor PGS-Camera Series

what is Camera parking guidance systemWhat is Camera Parking Guidance System?

AKE Camera Parking Guidance System is an innovative and comprehensive solution for modern car park, which provides outstanding features “Parking Guidance”, “Find Your Car”, “Surveillance”.

Each camera detector provides real-time security, monitors license plates and occupancy for up to 6 parking spaces. Thanks to front-end recognition technology, AKE camera detector can work standalone and define space status independently. Drivers can get parking information from lighted indicator and information signage, and track the parked vehicle location on nearby “Find Your Car” query kiosk.



Parking space status diagram



How does it work?

Check parking space's status via collecting and analyzing the photos data, recognize the vehicle license plate with LPR technology. Different color of the LED indicator will show different status of the parking space, Red-Occupied; Green-Available

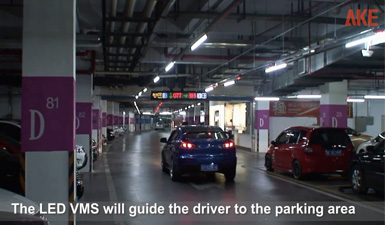

LED dispaly and VMS for parking gudiance


Server collect and analyze all space's status information, then release it to entrance led display and VMS (Variable Message Sign). Driver can find the available parking space efficiently according to the guidance in VMS

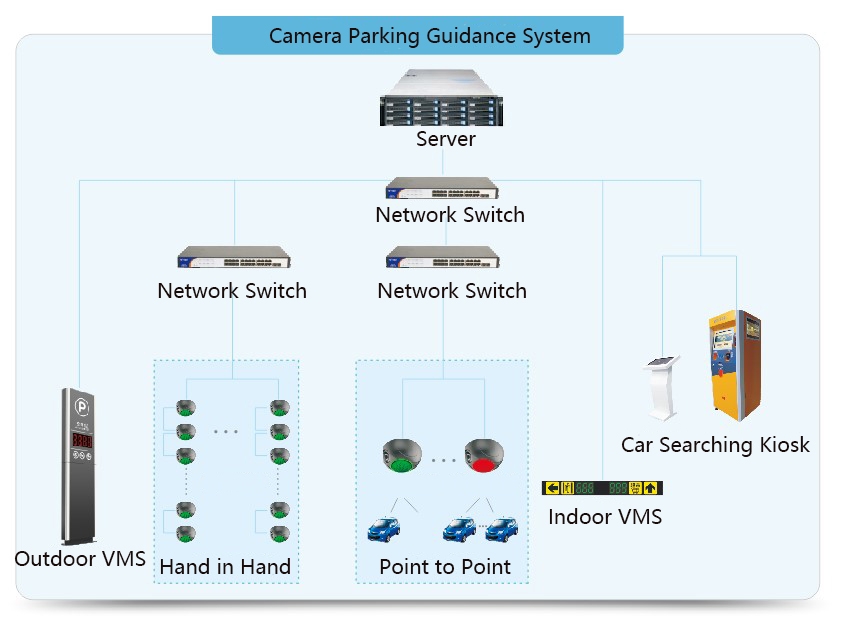

System structure diagram

Structure diagram for camera PGS-1

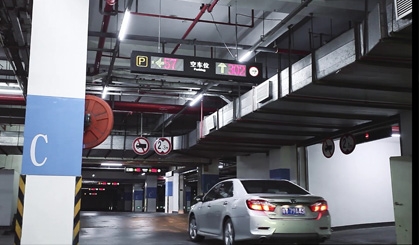

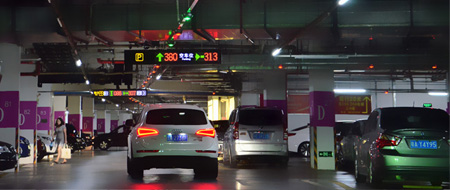

Project Case

Camera parking guidance system project case picture-1    Camera parking guidance system project case picture-2



Further Information
As with our other solutions, AKE takes care of the installation process and offers various maintenance options. You can find out the details in our the solution brochure. Go to Download the Brochure





  • Innovative wireless communication technology allows convenient system configuration and cost effective installation
  • Powerful detection capacity: one camera sensor monitors maximum 6 spaces
  • Integrated “Find Your Car” system solves problem of finding a parked car
  • Camera sensor at each space ensures high security inside car park
  • Statistic reports increase value and performance of car park


Download the Installation Brochure
Indoor Camera Parking Guidance System
Find Your Car System
Close
External signage for indoor camera PGS Parameters
Model Size(mm) Weight(g) Power Input Guarantee
1 year
Query Kiosk for finding your car Parameters
Model Size(mm) Weight(g) Power Input Guarantee
DCO-12N22H 1360X60X30 6262 AC220V±10%, 50Hz 1 year
Variable Message Sign Parameters
Model Size(mm) Weight(g) Power Input Guarantee
DHM-12R102G-16P12.5 400X200 2500 AC220V±10%, 60Hz 1 year
Camera detector Parameters
Model Size(mm) Weight(g) Power Input Guarantee
PVD-13/PVD-14 160X80 283 DC24V 1 year
